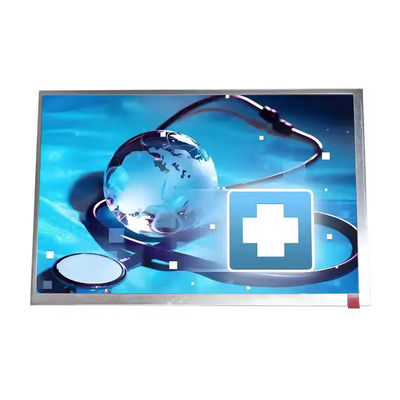

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module

Large Image : Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	TM101JDHG30-00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module

Description

Product Name:	Tianma 10.1 Inch TFT Display	Resolution:	1280x800
Outline Dimension:	231.22(W)×150.6(H)×7.1(D) Mm	Active Area:	216.96(W)×135.6(H) Mm
Interface Type:	40 Pins LVDS (1 Ch, 6/8-bit)	Luminance:	500cd/m2 Or Custom
Display Type:	TFT,Normally Black	View Direction:	ALL/IPS
Working Temp:	-20 ~ 70 °C	Storage Temp:	-30 ~ 80 °C
Highlight:	10.1 inch TFT Display Screen , 1280x800 TFT Display Screen , Wide Industrial TFT Display Screen

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module

General Description

The TM101JDHG30-00 is a 10.1-inch diagonal a-Si TFT-LCD display panel produced by Tianma Microelectronics Co., Ltd. (hereafter referred to as TIANMA). It features an integrated WLED backlight system with an LED driver and does not include a touchscreen.

Key specifications include:

Operating temperature range: -20°C to 70°C
Storage temperature range: -30°C to 80°C
WLED Backlight with a lifespan of ≥50,000 hours
Reverse interface
6/8-bit configuration

This model is recommended for use in Industrial, VOIP Phone, and Healthcare applications. It is equipped with built-in ST5821CA3 and ST5804CA1 driver IC

General Data

Model Name	Tianma 10.1 inch TFT Display
Resolution	1280x800
Model Size (WHT)	231.22(W)×150.6(H)×7.1(D) mm
Display Area (W*H)	216.96(W)×135.6(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	500 cd/m2
Pin number	40 pin
Contrast Ratio	800:1
Operating temperatures	-20 ~ 70 °C
Storage temperatures	-30 ~ 80 °C

Drawing

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module 0

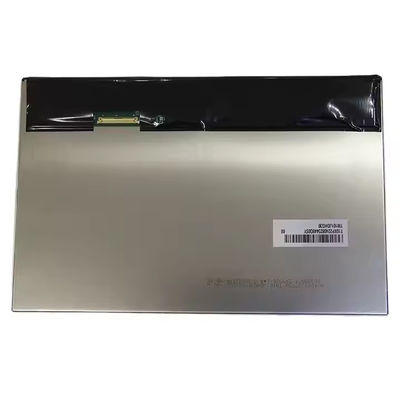

Product Details

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module 3

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module 4

TFT Applications:

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module,it is recommend that this model be applied to Industrial, VOIP Phone, Healthcare etc.

Tianma TM101JDHG30-00 10.1 inch Wide Industrial TFT Display Screen 1280x800 WXGA Color LCD Module 5
