18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

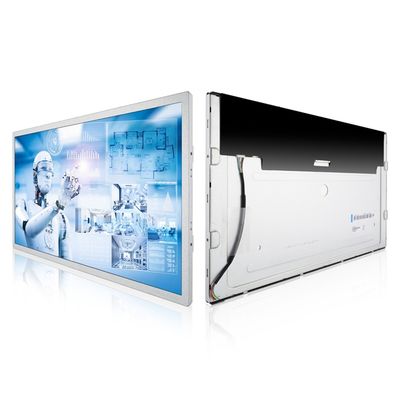

Large Image : 18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	GV185FHM-N10-DM30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

Description

Name:	18.5 Inch BOE FHD LCD Display	Resolution:	1920x1080
Outline Dimension:	430.4(W)×254.6(H)×12.5(D) Mm	Active Area:	408.96(W)×230.04(H) Mm
Interface:	LVDS 30PIN	Viewing Angle:	85/85/85/85
Brightness:	350 Cd/m2 Or Custom	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temperatures:	-20 ~ 70 °C
Storage Temperatures:	-30 ~ 80 °C
Highlight:	350nits LCD Display Screen , 18.5 Inch LCD Display Screen , 1920X1080 LCD Display Screen

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel

General Description

1.1 Introduction

1.0 GENERAL DESCRIPTION

The GV185FHM-N10-DM30 is a 18.5 inch diagonal a-Si TFT-LCD display panel product from BOE,with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: WLED Backlight, With LED Driver, Upside I/F, Matte . Based on its features, it is recommend that this model be applied to Industrial etc.

1.2 Features

LED back-light

LVDS interface

RoHS Compliant

16.7M color depth

FHD1920X1080

Wide Temperature

General Data

Model Name	BOE 18.5 inch TFT Display
Resolution	1920(RGB)×1080, FHD
Model Size (WHT)	430.4(H)×254.6(V) ×12.5(D) mm
Display Area (W*H)	408.96(W)×230.04(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	350 cd/m2
Pin number	30 pin
Contrast Ratio	1000:1
Operating temperatures	-20 ~ 70 °C
Storage temperatures	-30 ~ 80 °C

Drawing

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel 0

Product Details

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel 2

TFT Applications:

Industrial application,such as Video Phone/IP Phone/Smart Key/ e-cigarettes etc.

18.5 Inch BOE GV185FHM-N10-DM30 FHD 1920X1080 TFT IPS LCD Display Screen 350nits LCD Module 30pins LVDS 1080P LCD Panel 6
