GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications

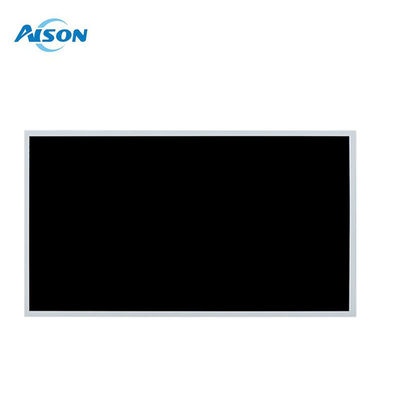

Large Image : GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	GV185FHM-N10-3M30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300k/month

Contact Now

GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications

Description

Name:	BOE 18.5 Inch FHD LCD Display	Resolution:	1920x1080
Outline Dimension:	430.4(H)×254.6(V) ×12.5(D) Mm	Active Area:	408.96(W)×230.04(H) Mm
Interface:	LVDS 30PIN	Viewing Angle:	85/85/85/85
Brightness:	350 Cd/m2 Or Custom	Display Mode:	Normally Black
Viewing Direction:	ALL/IPS	Operating Temperatures:	-30 ~ 80 °C
Storage Temperatures:	-30 ~ 80 °C
Highlight:	18.5 inch TFT Display , 1920X1080 TFT Display , Industrial Applications TFT Display

BOE 18.5 inch FHD 1920X1080 TFT Display GV185FHM-N10-3M30 LVDS 30 Pin -30 ~ 80 Degree

General Description

1.1 Introduction

1.0 GENERAL DESCRIPTION

GV185FHM-N10-3M30 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as active switching devices. This module has a 18.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7 M colors.

GV185FHM-N10-3M30 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are in the following: Wide Temperature, WLED Backlight, With LED Driver, Upside I/F, Matte . Based on its features, it is recommend that this model be applied to Industrial etc.

1.2 Features

LED back-light

LVDS interface

RoHS Compliant

16.7M color depth

FHD1920X1080

Wide Temperature

General Data

Model Name	BOE 18.5 inch TFT Display
Resolution	1920(RGB)×1080, FHD
Model Size (WHT)	430.4(H)×254.6(V) ×12.5(D) mm
Display Area (W*H)	408.96(W)×230.04(H) mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing	IPS
Brightness	350 cd/m2
Pin number	30 pin
Contrast Ratio	1200:1
Operating temperatures	-30 ~ 80 °C
Storage temperatures	-30 ~ 80 °C

Drawing

GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications 0

Product Details

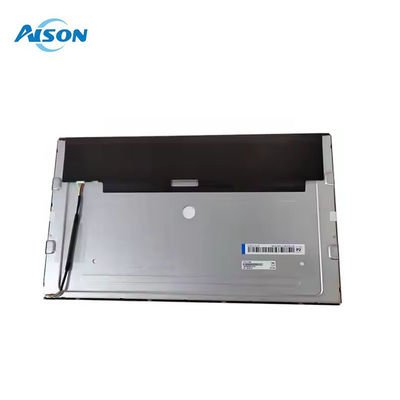

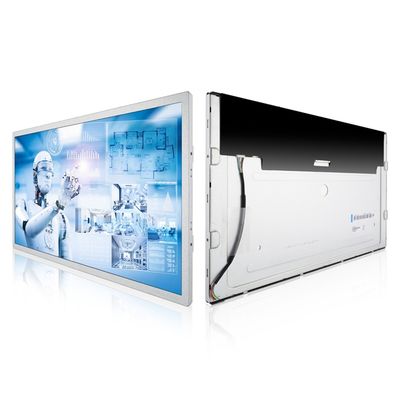

GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications 2

TFT Applications:

Industrial application,such as Video Phone/IP Phone/Smart Key/ e-cigarettes etc.

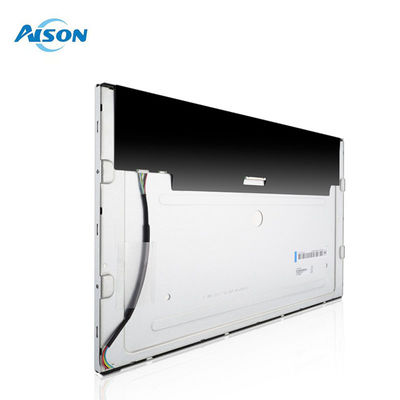

GV185FHM-N10-3M30 18.5 inch FHD 1920X1080 TFT Display LVDS 30 Pin -30 80 Degree for Industrial Applications 6
