Product Details:
|
| Name: | 3.5 Inch 640x480 LCD Module | Resolution: | 640x480 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*3.26mm | Active Area: | 70.08 X 52.56mm |
| Interface: | MCU/RGB | Viewing Angle: | 80/80/80/80 |
| Brightness: | 1000cd/m2 | Display Mode: | TFT,Normally Black |
| Contrast Ratio: | 800:1 | IC Or Equivalent: | NV3052C |
| Connection: | Plug-in FPC | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 640x480 TFT LCD Display,3.5 Inch TFT LCD Display,NV3052C TFT LCD Display |
||

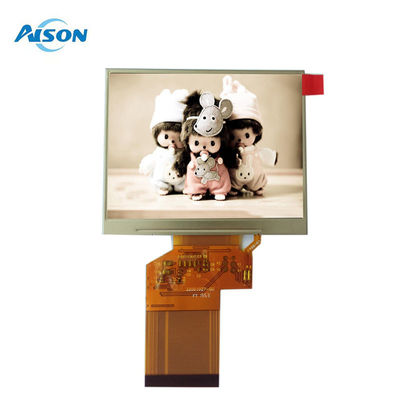

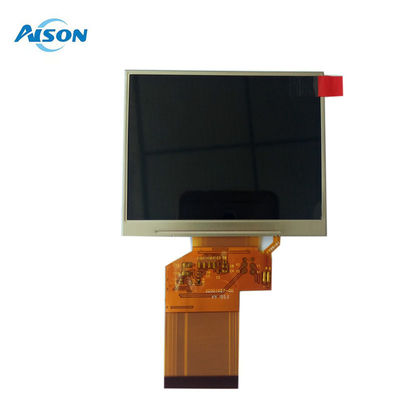

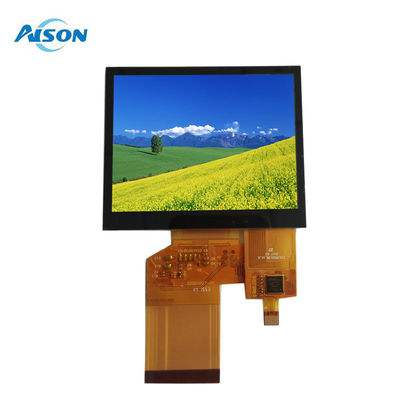

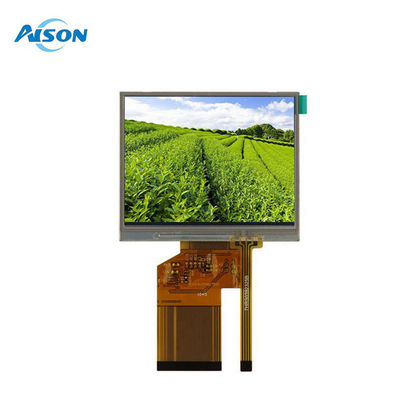

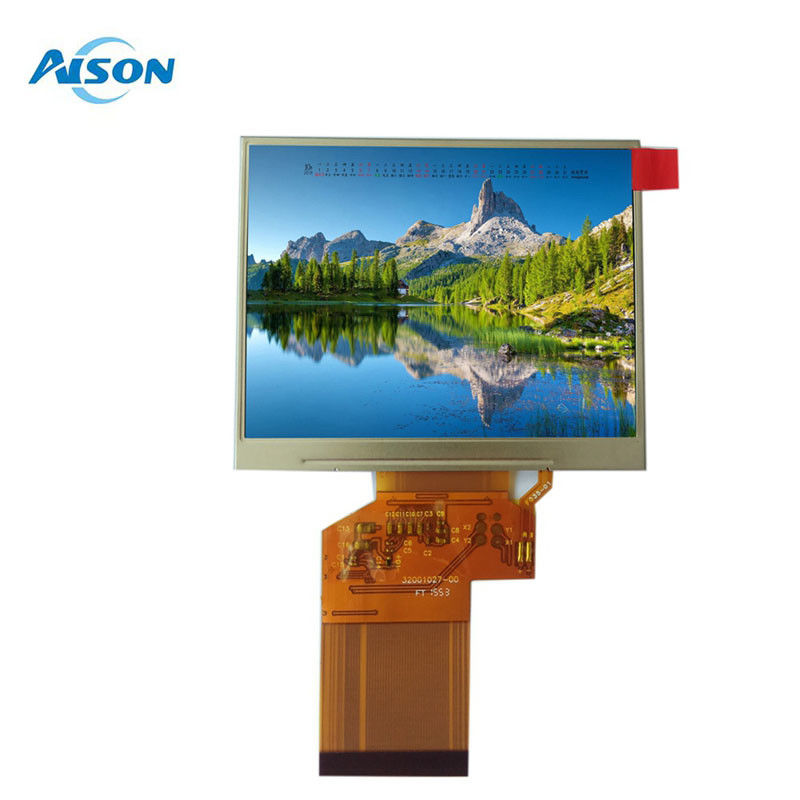

3.5 Inch 640x480 IPS TFT LCD Display RGB 54 Pin Driver NV3052C
General Data
| Model Name | 3.5 inch 640x480 TFT LCD Display |
| Resolution | 640x480 |
| Model Size (W*H*T) | 76.90*63.9*3.26mm |
| Display Area (W*H) | 70.08 x 52.56mm |
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 1000 cd/m2 |
| Pin number | 54 pin |
| Driver IC | NV3052C |
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
Recommended Applications: Outdoor Measurement Instruments & Industrial Equipment: High brightness and stable display performance make this module ideal for use in bright sunlight or complex environments, ensuring long-lasting readability.
Portable Testing Equipment: Compact and lightweight, this module is perfect for portable testing needs, offering reliable display performance for fieldwork and routine operations.
