Product Details:
|
| Item: | 2.4 Inch Color LCD Module | Resolution: | 240x320 |
|---|---|---|---|
| Module Size: | 42.72*60.26*2.3mm | AA Size: | 36.72*48.96mm |
| Interface: | SPI | Luminance: | 180 Cd/m2 |
| View Direction: | 12 O'clock | Driver IC: | ST7789V |
| Working Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 240X320 TFT LCD Display,2.4 inch TFT LCD Display,SPI Interface TFT LCD Display |
||

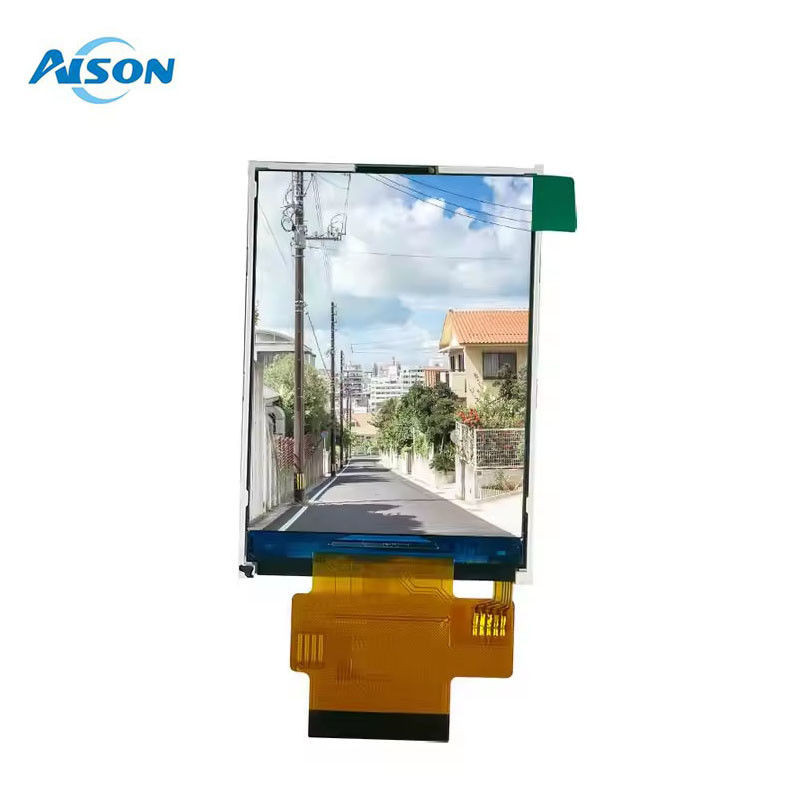

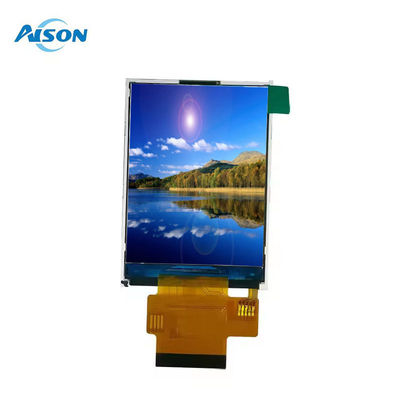

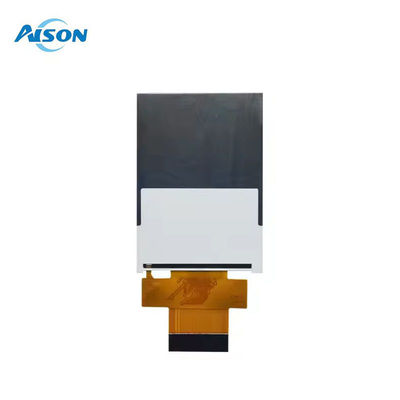

2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial
The Z024Q01 presents a comprehensive 2.4-inch TFT LCD display, boasting a diagonal resolution of 240x320 in full color. This top-notch display integrates the ST7789V or ILI9341V IC and supports the SPI Interface. With module dimensions measuring 42.72*59.46*2.3 mm and an active area of 36.72 x 48.96 mm, this model incorporates the ST7789V or ILI9341V controller on the module, with a logic supply voltage range spanning from 2.4V to 3.3V.
Designed primarily for portrait mode, our 2.4" TFT LCD module can be easily adapted for landscape mode with the appropriate technical guidance available upon request. Notably, this 2.4" TFT Display offers an brightness of 180cd/m2 (typical value) and operates seamlessly within temperatures ranging from -20℃ to +70℃, while maintaining a storage capacity of -30℃ to +80℃. Perfectly suited for a wide range of applications, including smart home integration, medical devices, portables, wearables, energy control systems, telecommunications, and data transfers.
General Data
| Model Name | 2.4 inch LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) | 42.72*59.46*2.3 mm |
| Display Area (W*H) | 36.72*48.96mm |
| Interface | SPI/MCU/RGB |
| Display Mode | Normally White,Transmissive |
| Viewing Angles | 65/55/65/65 |
| Brightness | 180 cd/m2 |
| Pin number | 14 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 4 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This versatile display is suitable for various applications, including air quality testing, blood glucose measurement, MP3 players, home appliances, as well as specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.
