Product Details:
|
| LCM Type: | 2 Inch TFT LCD Module | Resolution: | 240x320 |
|---|---|---|---|
| Module Size: | 34.6*47.8*1.9mm | AA Size: | 30.6x 40.8mm |
| Interface: | 4 Wire SPI | Brightness: | 200 Cd/m2 |
| View Direction: | ALL | Driver Controller: | ST7789V |
| Working Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
2.4 inch 240X320 TFT LCD Display SPI Interface for Industrial

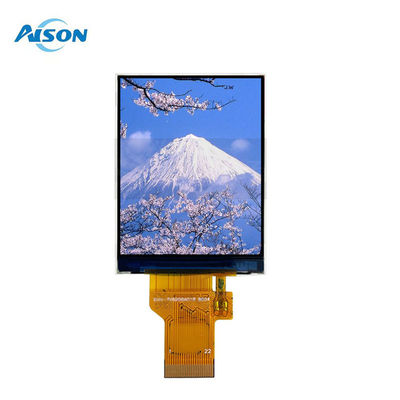

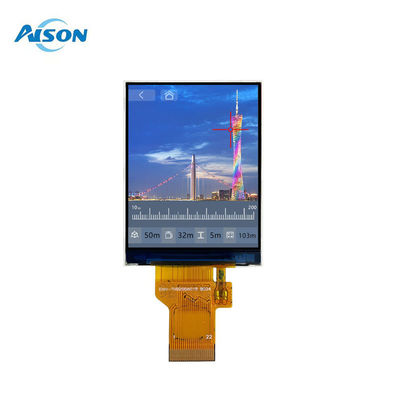

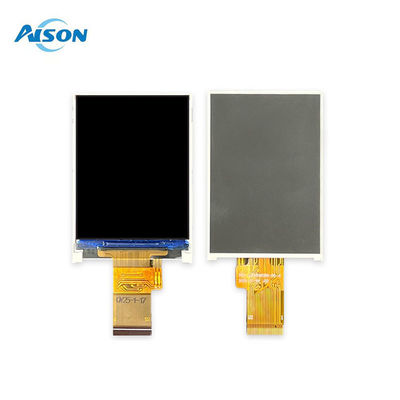

Z020Q10 is a 2-inch Portrait Mode IPS TFT-LCD with a resolution of 240x320 pixels. Built with ST7789Vdriver IC with 4 wire SPI interface.
Z020Q10 has a wide viewing angle of Left: 80/ Right: 80/ Up: 80/ Down: 80 degree, a contrast ratio of 250:1, a brightness of 200 nits.This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.
The 2-inch portrait mode TFT LCD display is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment, sports watches, and other electronic device
General Data
| Model Name | 2 inch LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) | 34.6*47.8*1.9mm |
| Display Area (W*H) | 30.6x 40.8mm |
| Interface | 4 Wire SPI |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 200 cd/m2 |
| Pin number | 20 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 3 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The 2 inch portrait mode TFT LCD Module is suitable for a wide range of electronic devices, including measurement tools such as laser distance measuring instruments and air quality detectors, as well as testing equipment,
