Product Details:
|
| Name: | Mini LCD Module | Resolution: | 128x160 |
|---|---|---|---|
| Outline Dimension: | 34.7*46.7*2.25 Mm | Active Area: | 28.03*35.04 Mm |
| Interface: | MCU | Brightness: | 200 Cd/m2 |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -30~80℃ |
| Highlight: | 1.77 Inch Mini LCD Module,Mini LCD Module 200 Cd/M2,Small LCD Module 128x160 |
||

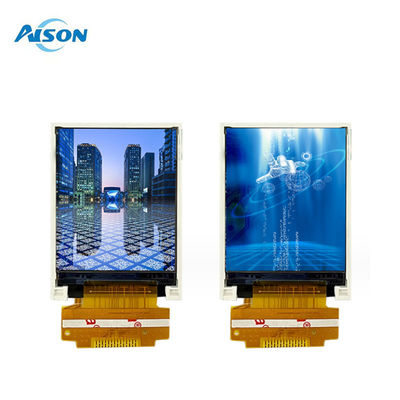

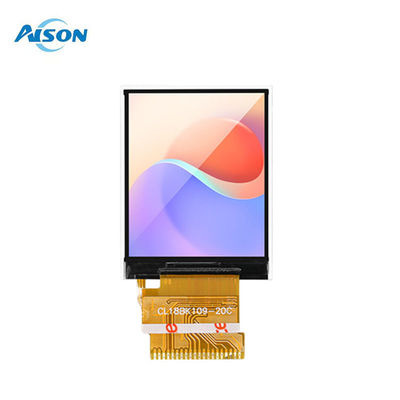

1.77 inch Mini LCD Module Display 128x160 Resolution MCU Interface
Z018QQ07 is a full color 128x160 TFT-LCD display module, diagonal size 1.77-inch. This module is built in with ST7735S IC; it supports 8080 8/16-bit parallel and serial 3-wire SPI interface. This model is having module dimension of 34.7*46.7 mm and Active area size of 28.03 x 35.04 mm; it's supply voltage range from for analog is 2.5V to 4.8V, typical value 2.75V.
This 1.77" TFT LCD display with ST7735 IC is featured with brightness 200 cd/m2(typical value) and contrast ratio (typical value) of 500:1. it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. Z018QQ07 is a portrait mode LCD module, if you want to custom the lcd module pls contact us for more information.
General Data
| Model Name | 1.77 inch Mini LCD Module Display |
| Resolution | 128x160 dots |
| Model Size (W*H*T)mm | 34.7*46.7*2.25 |
| Display Area (W*H)mm | 28.03*35.04 |
| Interface | MCU |
| Display Type | Normally White TN,Transmissive |
| Viewing | 6 o'clock |
| Brightness | 200 cd/m2 |
| Pin number | 26 |
| Driver IC |
ST7735S
|
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
