Product Details:
|
| Name: | SPI LCD Module | Resolution: | 320x480 |
|---|---|---|---|
| Module PCB Size: | 61.74*108.04mm | Active Area: | 55.68x83.52mm |
| Interface: | SPI 4-line | Viewing Angle: | 55/65/65/65 |
| Display Mode: | TFT,Normally White | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 4 Inch SPI LCD Module,SPI LCD Module 3.3V,5V 320x480 Display |
||

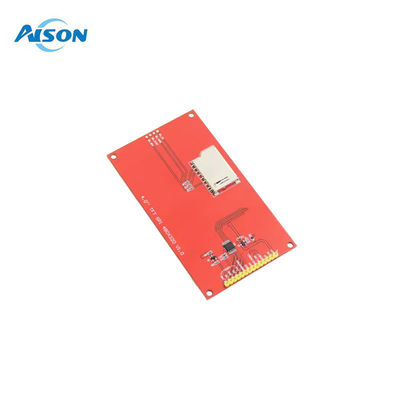

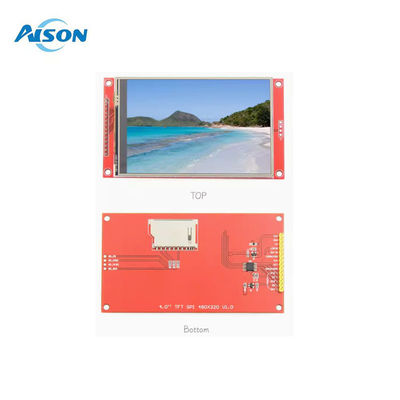

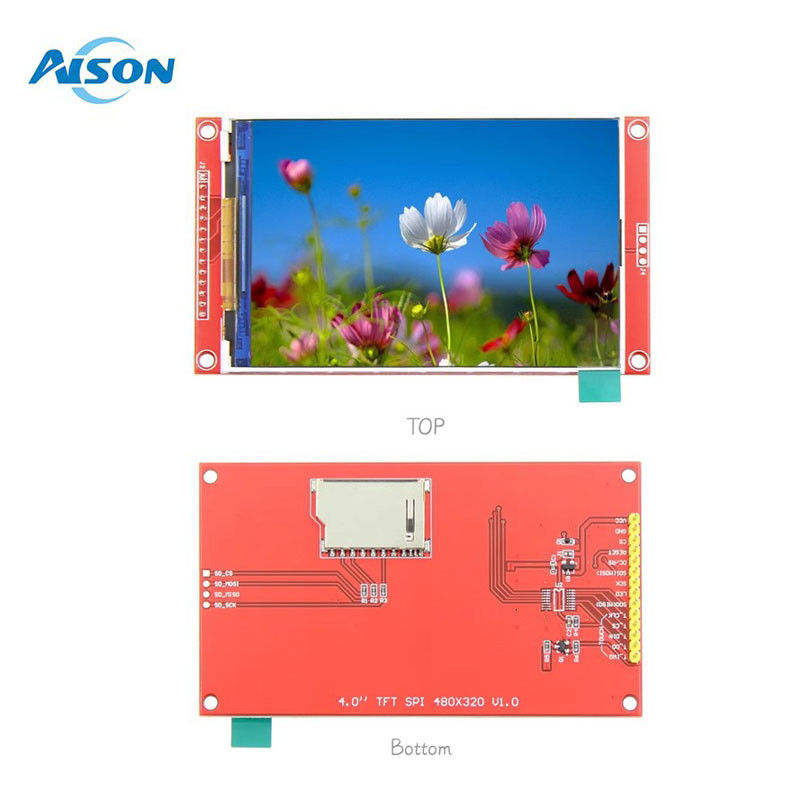

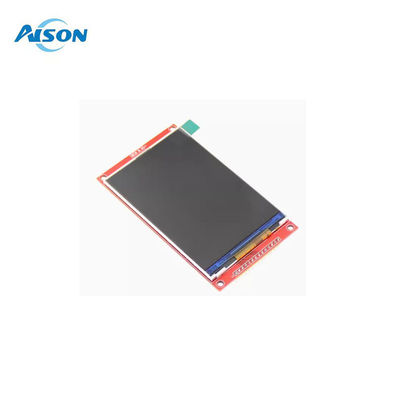

4 inch SPI TFT LCD Module ST7796 with PCB Board
Display General Description
1. 4.0-inch color screen,support 65K color display,display rich colors.

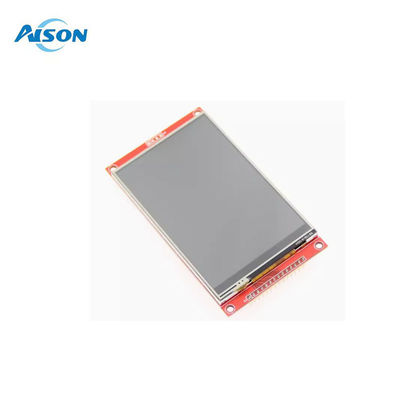

2. 480X320 resolution, optional resistive touch function.
3. Using the SPI serial bus, it only takes a few IOs to illuminate the display.
4. Easy to expand the experiment with SD card slot.
5. Provide a rich sample program.
6. Military-grade process standards, long-term stable work.
7. Provide underlying driver technical support.
General Data
| Model Name | 4 inch SPI TFT LCD Module |
| Resolution | 320x480 |
| Module PCB Size |
61.74*108.04mm
|
| Display Area |
55.68x83.52mm
|
| Interface | 4 Line SPI |
| Display Mode | Normally White,Transmissive |
|
Viewing angles
|
55/65/65/65 |
| Driver IC | ST7796 |
| Voltage | 3.3~5V |
|
Operating temperatures
|
-20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
| PCB Board | With |
| Touch Screen | Optional |
Product Details
