3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface

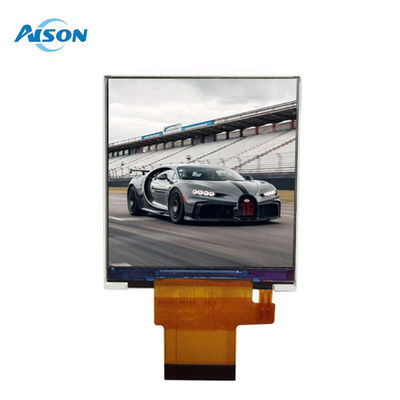

Large Image : 3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z035HV14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton/Blister
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface

Description

Name:	3.5 Inch Portrait Display	Resolution:	320x480
Outline Dimension:	54.5832.45 Mm	Active Area:	48.96 X 73.44mm
Interface:	MCU/RGB	Brightness:	500cd/m2
Display Mode:	TFT,Normally Black	Operating Temperatures:	-20 To 70 Degree
Highlight:	Portrait TFT LCD Display , TFT LCD Display 500cd/m2 , LCD Panel Module 320x480

3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface

Display General Description

Z035HV14 is a 3.5-inch TFT LCD module with an IPS panel. This module supports MCU and RGB interfaces. This portrait display features a resolution of 320×480 dots and a brightness of 500 nits (typical value).

The IPS panel has the advantage of wide viewing angles of Left:85 / Right:85 / Up:85 / Down:85 degrees (typical). Z035HV14 can operate at temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃. .

General Data

Product Name	3.5 inch 320x480 LCD Module
Number of Pixel	320x480
Interface	RGB/MCU
Luminance(cd/m2)	500 cd/m2
Active area	48.96 x 73.44mm
LCM (W x H x D)	54.5832.45 mm
Viewing Direction(eye)	IPS/ALL
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing
3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface 0

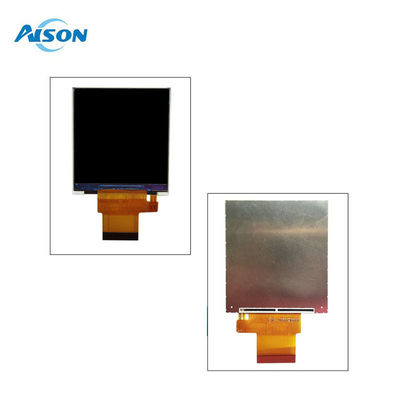

Product Details

3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface 1

TFT Applications

Overall, Z035HV14 is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.

3.5 Inch Portrait TFT LCD Display 500cd/M2 LCD Panel Module 320x480 RGB/MCU Interface 3
