Product Details:
|
| Name: | 7 Inch IPS Display | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*3.5mm | Active Area: | 154.21 X 85.92mm |
| Interface: | LVDS | Brightness: | 450cd/m2 |
| LCD Type: | TFT, Normally Black, Transmissive | Contrast Ratio: | 700:1 |
| Operating Temperatures: | -20℃ To +70℃ | Storage Temperatures: | -30℃ To +80℃ |
| Highlight: | 7 Inch IPS Display,IPS Display 1024x600,IPS TFT Display 450 Cd/M2 |
||

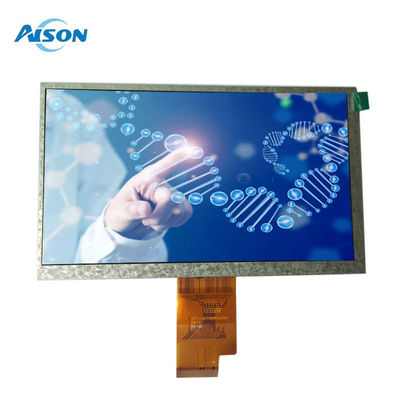

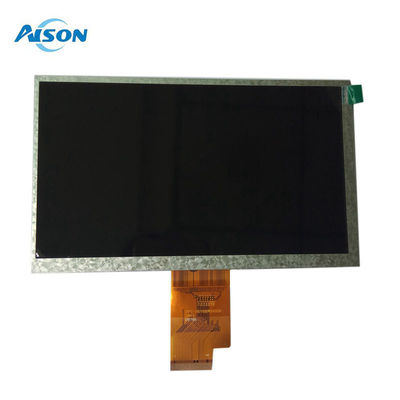

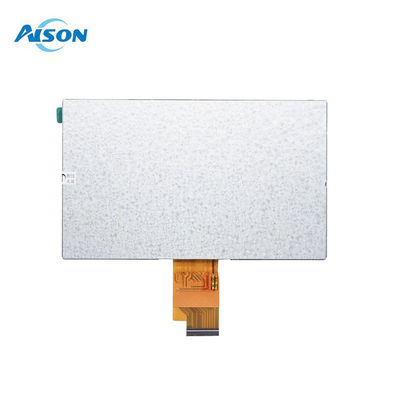

7 inch IPS TFT LCD Display with 1024x600 Resolution and LVDS Interface for Industrial Control Applications
Z070WS15 is a 7 inch 1024x600 TFT IPS display with optional high brightness backlight. This 7" TFT display's high resolution and IPS panel lend to rich, saturated graphics and images at any viewing angle. The 7 inch LCD module has an LVDS interface allowing this display to be suitable for applications requiring high-speed graphics and video data transfers. The Z070WS15 series is available with options of capacitive touch screen and high bright backlight.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an IPS viewing direction 85/85/85/85. The brightness ranges from 400 nits to 450 nits.
This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
General Data
| Product Name | 7 inch IPS TFT Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 164.9*100*3.5 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
