Product Details:
|
| Name: | 8 Inch LCD Module | LCD Type: | TN TFT 800X480 |
|---|---|---|---|
| Outline Dimension: | 192.8*116.9*6.4mm | Active Area: | 176.64 X 99.36mm |
| Interface: | 24 Bit RGB | Display Mode: | Normally White Transmissive |
| Brightness: | 1000 Cd/m2 | View Direction: | 12 O'clock |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 800x480 Sunlight Readable LCD Module,Sunlight Readable LCD Module 8 Inch,LCD TFT Display Panel 1000 cd/m2 |
||

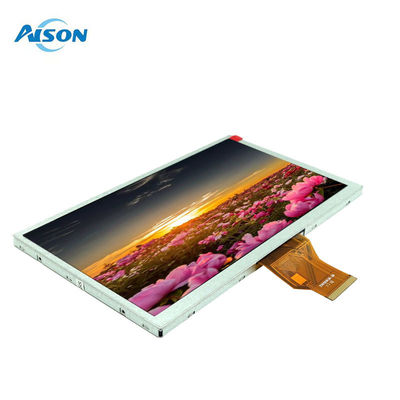

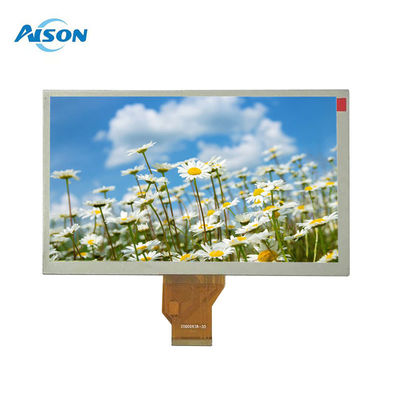

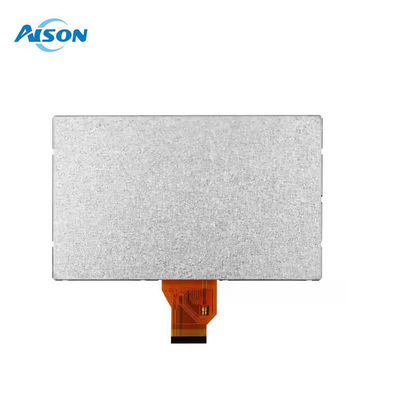

8 inch Sunlight Readable Displays TFT Module 800x480 RGB 24 Bit Interface
Introducing the Z080TN64J, a high-performance 8-inch TFT LCD display module designed for exceptional clarity and versatility. With a resolution of 800x480 pixels and a 16:9 aspect ratio, this display delivers crisp and vibrant visuals for a wide range of applications.
Key Features:
Brightness & Contrast: Boasting a typical brightness of 350 nits and a contrast ratio of 500:1, the Z080TN64J ensures sharp image quality in various lighting conditions.
Dimensions: The active display area measures 176.64 x 99.36 mm, while the module itself has an outline dimension of 192.80 x 116.90 mm, offering a compact yet powerful solution.
Driver ICs & Interface: Equipped with EK9713 and EK73002 driver ICs, the module supports a 24-bit RGB interface, ensuring accurate color reproduction and smooth performance.
Power Supply & Temperature Range: Operate seamlessly with a supply voltage range of 3.0V to 3.6V (typical 3.3V) and a wide temperature range of -20°C to +70°C, making it ideal for demanding environments.
Applications: The Z080TN64J is perfect for industrial control systems, medical devices, and other applications requiring reliable and high-quality display performance. Its durable design and versatile features make it a top choice for developers and manufacturers alike.
Upgrade your display needs with the Z080TN64J – where quality meets innovation.
General Data
| Model Name | 8 inch TFT Display |
| Resolution | 800X480 |
| Model Size (W*H*T)mm | 192.8*116.9*6.4mm |
| Display Area (W*H)mm |
176.64 x 99.36mm
|
| Interface | 24 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 1000 cd/m2 |
| Pin number | 50 |
| Drive IC | EK9713 + EK73002 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
