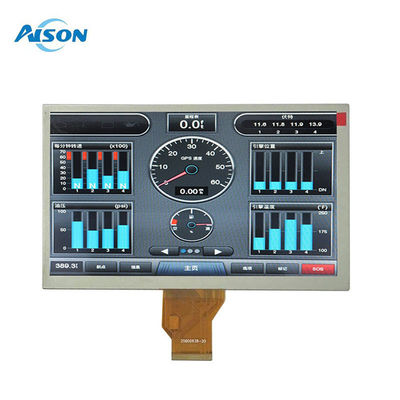

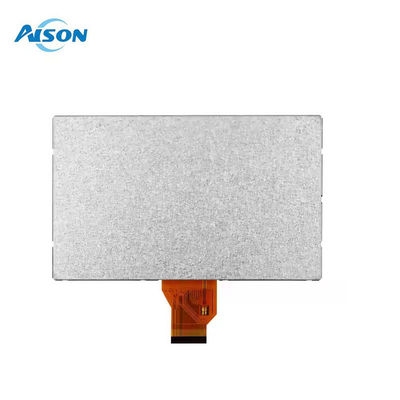

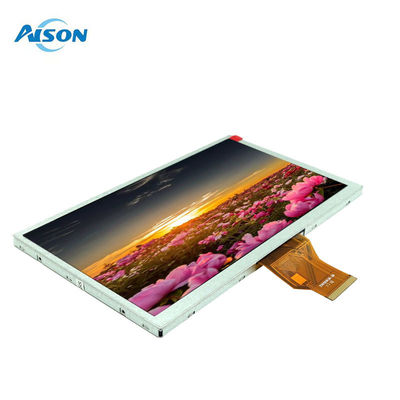

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface

Large Image : 8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z080TN64J

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10~20usd/pc
Packaging Details:	Blister Package/Carton
Delivery Time:	7 working days
Payment Terms:	T/T
Supply Ability:	200k/month

Contact Now

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface

Description

Name:	8 Inch Sunlight Readable Displays	Resolution:	800x480
Module Size:	192.8116.96.4mm	Display Active Area:	176.64 X 99.36mm
Interface:	24 Bit RGB	Display Mode:	Normally White Transmissive
Brightness:	1000 Cd/m2	Operating Temperatures:	-20 To 70 Degree
Connector:	50 Pin
Highlight:	8 Inch Sunlight Readable Displays , Sunlight Readable Displays 50 Pin , 50 Pin Display 800x480

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface

Description

It’s 8 inch 800×480 TN panel tft lcd, with high 1000 brightness, RGB 50 pin interface. This is a 8 inch sunlight readable TFT display for outdoor applications.

Specification

Size: 8 inch(diagonal)
Resolution: 800×480
Outline Dimension: 192.8(W) x 116.9(H) x 6.4(T)mm
Active Area: 176.64(W) x 99.36(H)
Luminance: 1000cd/㎡
Viewing Angle: 70/70/50/70(L/R/T/B)
Operation Temp.: -20~70℃
Storage Temp.: -30~80℃
Interface: RGB interface

General Data

Model Name	8 inch Sunlight Readable TFT Display
Resolution	800X480
Model Size (WHT)mm	192.8116.96.4mm
Display Area (W*H)mm	176.64 x 99.36mm
Interface	24 bit RGB
Display Mode	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	1000 cd/m2
Pin number	50
Drive IC	EK9713 + EK73002
BACKLIGHT TYPE	27 WHITE LED
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface 0

Product Details

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface 1

TFT Applications

This TFT LCD module is versatile and suitable for a wide range of applications:

Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

8 Inch Sunlight Readable Displays 50 Pin TFT LCD Module 800x480 RGB 24 Bit Interface 4
