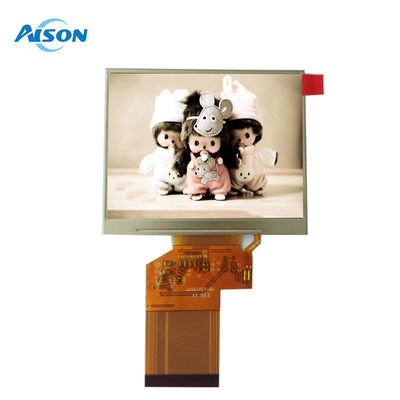

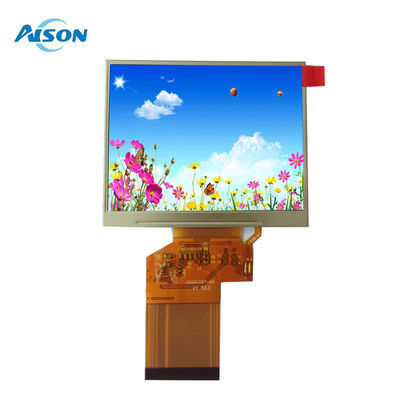

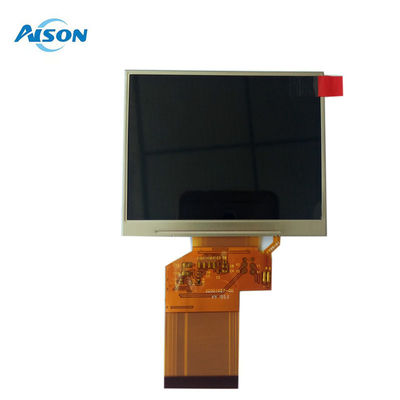

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin
3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin

Large Image :  3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z035NC111
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton/Blister
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin

Description
Name: 3.5 Inch TFT LCD Color Display Resolution: 320x240
Outline Dimension: 76.90*63.9*3.26mm Active Area: 70.08 X 52.56mm
Interface: 24 Bit RGB Brightness: 350cd/m2
Operating Temperatures: -20 To 70 Degree Storage Temperatures: -30 To 80 Degree
Highlight:

54 Pin TFT LCD Color Display

,

TFT LCD Color Display 3.5 Inch

,

320x240 Screen 54 Pin

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin



Display General Description
Z035NC111 is 320x240 pixels 3.5 inch color tft lcd display with HX8238 controller,optional 4-wire resistive touch panel with soldering type FPC or connector type FPC and optional capacitive touch panel with controller,superior display quality,wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO and ARM .

It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.



General Data

Model Name 3.5 inch TFT Display
Resolution 320x240
Model Size (W*H*T) 76.90*63.9*3.26mm
Display Area (W*H) 70.08 x 52.56mm
Interface RGB
Display Mode Normally White,Transmissive
Viewing 12 o'clock
Brightness 350 cd/m2
Pin number 54 pin
Driver IC
HX8238D
Operating temperatures -20 to 70 ℃
Storage temperatures -30 to 80 ℃





Drawing
3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 0





Product Details

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 1

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 2



TFT Applications

This 3.5 inch 320x240 lcd module can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.

3.5 inch 320x240 TFT LCD Color Display With RGB Interface 54 Pin 3
