Product Details:
|
| LCM Name: | 3.5 Inch Portrait TFT LCD | Resolution: | 320x480 |
|---|---|---|---|
| Module Dimension: | 54.5*83*2.45 Mm | Active Area: | 48.96 X 73.44mm |
| Interface Type: | MCU/RGB | Viewing Direction: | ALL |
| Luminance: | 500cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 3.5 Inch TFT LCD Module,TFT LCD Module 320x480,Portrait LCD Display 500 Cd/M2 |
||

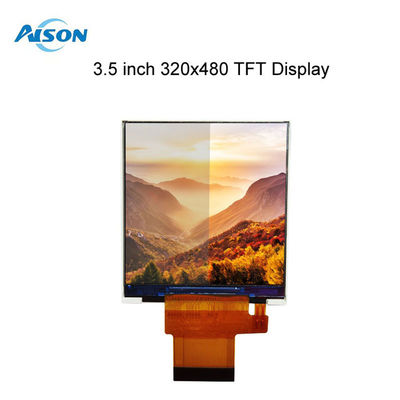

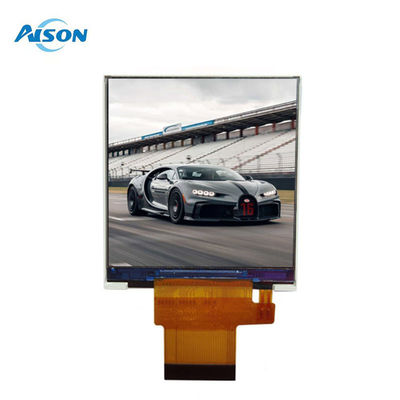

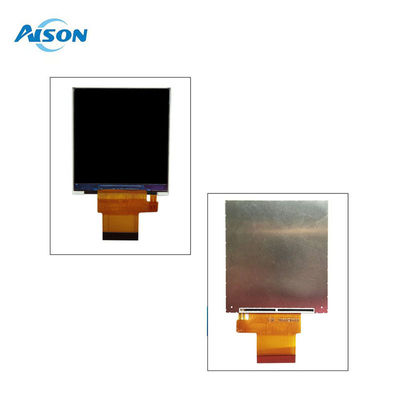

3.5 inch Portrait 320x480 IPS TFT LCD Module MCU/RGB Interface
The Z035HV14 is a high-performance 3.5-inch Portrait TFT LCD module featuring an advanced IPS panel. Designed for portrait displays, this lcdd module supports both MCU and RGB interfaces, offering a resolution of 320×480 pixels and a typical brightness of 500 nits.
The 3.5 inch Portrait IPS panel provides exceptional image quality with wide viewing angles of 85 degrees (typical) in all directions: left, right, up, and down. Built for reliability, the Z035HV14 operates within a temperature range of -20℃ to +70℃ and can be safely stored in temperatures from -30℃ to +80℃, ensuring optimal performance in diverse environments.
General Data
| Product Name | 3.5 inch Portrait LCD Module |
| Number of Pixel | 320x480 |
| Interface | RGB/MCU |
| Luminance(cd/m2) | 500 cd/m2 |
| Active area | 48.96 x 73.44mm |
| LCM (W x H x D) | 54.5*83*2.45 mm |
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
Overall, Z035HV14 is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
