Product Details:
|
| Product Name: | 4.3 Inch Sunlight Readable LCD Display | Resolution: | 800X480 |
|---|---|---|---|
| Outline Dimension: | 105.45*67.2*3 Mm | Active Area: | 95.04 X 53.856 Mm |
| Interface: | 24 Bit RGB | Brightness: | 1000 Cd/m2 |
| Operating Temperatures: | -30 To 85 Degree | Storage Temperatures: | -30 To 85 Degree |
| Highlight: | 800x480 Sunlight Readable LCD Display,Sunlight Readable LCD Display 1000,1000 Cd/M2 LCD Display 4.3 Inch |
||

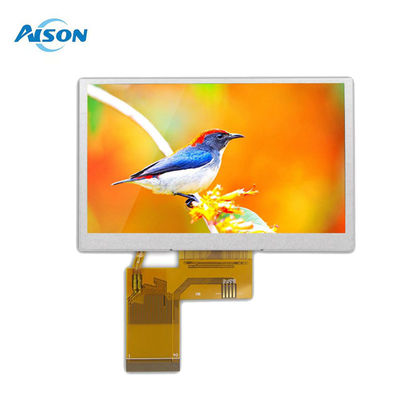

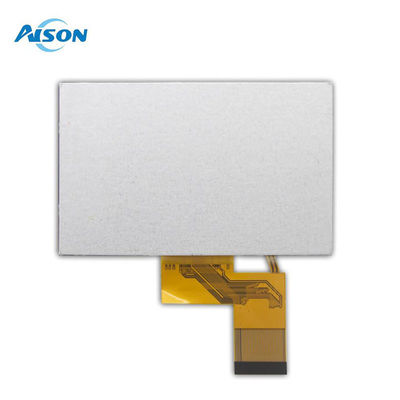

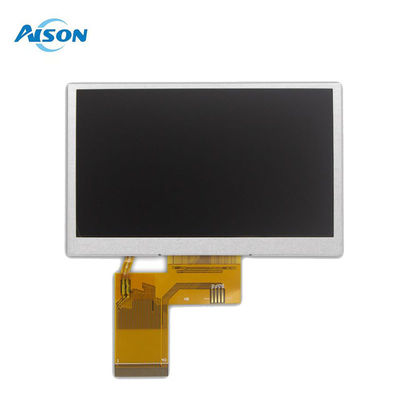

Sunlight Readable 4.3 inch 800x480 TFT LCD Display 1000 Cd/M2
Z043WV08J is a High Brightness 4.3 inch wider view angle IPS TFT LCD module, with 800X480 pixels high resolution and 1000 nits brightness (typical value). This TFT model is built in with ST7265 driver IC, supporting 24-bit RGB interfaces. We also offer Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) options for this 4.3 inch lcd module.
This 4.3” IPS TFT has a viewing angle wider than TN TFT, its viewing angles are Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value). The supply voltage for LCM (VCC) of Z043WV08J is from 3.0V to 3.6V. The module has a glare-surface glass, 16:9 aspect ratio, 800:1 contrast ratio (typical value). It can operate at temperatures from -30℃ to +80℃ and its storage temperatures are from -30℃ to +85℃.
Aison's sunlight-readable TFT LCD is perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments, etc.
General Data
| Model Name | 4.3 Inch IPS Sunlight Readable Display |
| Resolution | 800x480 |
| Model Size (W*H*T) | 105.45*67.2*3 mm |
| Display Area (W*H) | 95.04 x 53.856 mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Driver IC | ST7265 |
| Operating temperatures | -30 to 80 ℃ |
| Storage temperatures | -30 to 85 ℃ |
Drawing
Product Details
TFT Applications
Aison's sunlight-readable TFT LCD is perfect for outdoor measuring equipment, industrial measuring equipment, testing equipment, measuring tools, measuring instruments, etc.
