Product Details:
|
| Name: | TFT LCD Display | Resolution: | 800X480 |
|---|---|---|---|
| Module Size: | 105.45*67.2*3 Mm | Active Area: | 95.04 X 53.856 Mm |
| LCD Interface: | 24 Bit RGB | Luminance: | 450 Cd/m2 |
| Operating Temperatures: | -30 To 80 Degree | LCD Type: | TFT,Normally Black |
| Viewing Direction: | All | ||
| Highlight: | 4.3 Inch TFT LCD Display,TFT LCD Display 40 Pin,40 Pin LCD Screen 800x480 |
||

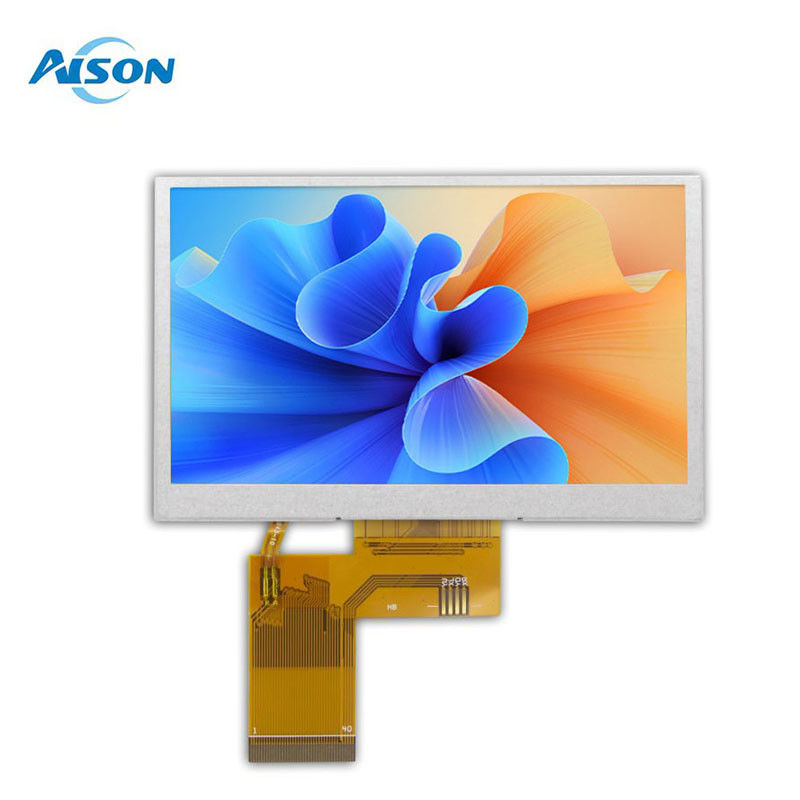

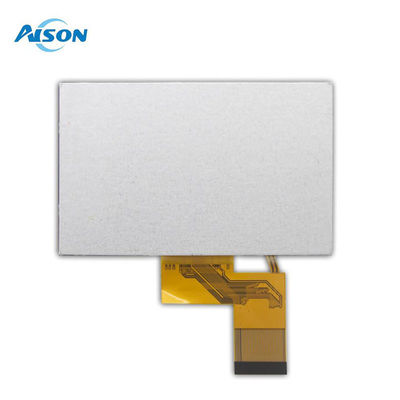

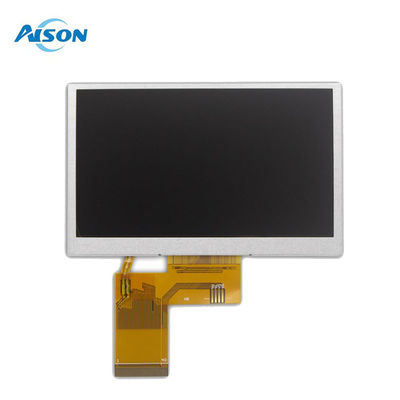

4.3 Inch 800x480 IPS TFT LCD Module Display with RGB Interface
This 4.3” IPS TFT has a viewing angle wider than TN TFT, its viewing angles are Left:80 / Right:80 / Up:80 / Down:80 degrees (typical value). The supply voltage for LCM (VCC) of Z043WV08H is from 3.0V to 3.6V. The module has a glare-surface glass, 16:9 aspect ratio, 800:1 contrast ratio (typical value). It can operate at wide temperatures from -30℃ to +80℃ and its storage temperatures are from -30℃ to +85℃.
General Data
| Model Name | 4.3 inch IPS TFT Display |
| Resolution | 800x480 |
| Model Size (W*H*T) | 105.45*67.2*3 mm |
| Display Area (W*H) | 95.04 x 53.856 mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Driver IC | SC7283 |
| Operating temperatures | -30 to 80 ℃ |
| Storage temperatures | -30 to 85 ℃ |
Drawing
Product Details
TFT Applications
This 4.3 inch IPS TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
