Product Details:
|
| LCM Name: | 2.8 Inch TFT LCD Display | Dot Matrix: | 240x320 |
|---|---|---|---|
| Outline Dimension: | 47.6*64.86*2.1 Mm | Active Area: | 43.2*57.6 Mm |
| TFT Interface: | SPI/ MCU/RGB | Luminance: | 350cd/m2 |
| Display Type: | IPS | Driver IC: | ST7789V |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 2.8 Inch TFT LCD Display,TFT LCD Display 240x320,240x320 Screen 350 Cd/M2 |
||

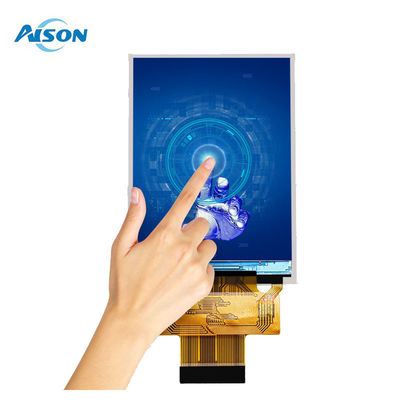

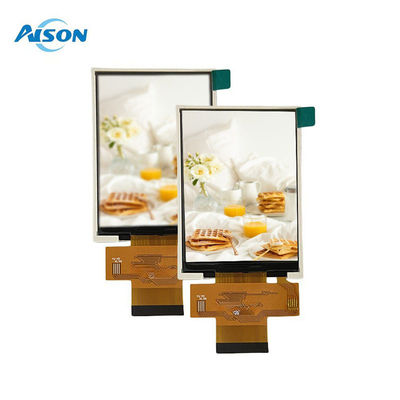

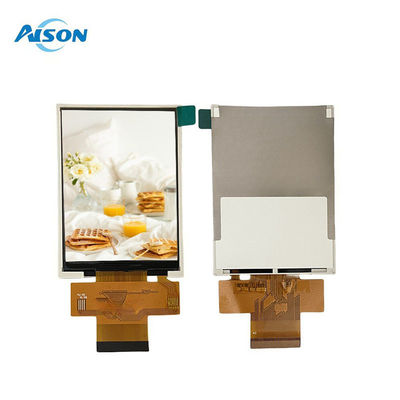

2.8 Inch 240x320 IPS LCD Module Display with SPI/ MCU/RGB Interface
Z028Q20 is a 2.8-inch IPS TFT-LCD display module with a high-resolution of 240 x 320 pixels. Equipped with the ST7789V controller, this module supports both MCU8080 and SPI interfaces, offering versatile connectivity options. The IPS panel enhances viewing experience with a wide
viewing angle of 80 degrees (typical) in all directions (left, right, up, down), a contrast ratio of 500:1 (typical), and a brightness of 350 nits (typical).
Featuring a portrait-oriented design, the 2.8 inch color tft display Z028Q20 integrates the ST7789V controller directly on the module. It operates on an analog supply voltage (VCI) ranging from 2.5V to 3.3V. Designed for reliability, this TFT-LCD module functions effectively within an operating temperature range of -20°C to +70°C, with storage capabilities from -30°C to +80°C.
This compact, high-performance 2.8 inch module display is ideal for a variety of applications, including industrial devices, consumer electronics, and medical equipment.
General Data
| Model Name | 2.8 inch IPS LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) |
47.6*64.86*2.1mm
|
| Display Area (W*H) |
43.2*57.6 mm
|
| Interface | SPI/MCU/RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 350 cd/m2 |
| Pin number | 45 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 4 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The versatility of this 2.8 inch IPS TFT-LCD displays makes them suitable for various applications, including consumer electronics, medical displays, and industrial control panels.
