Product Details:
|
| Name: | 2.4 Inch IPS Color TFT Module | Resolution: | 240x320 |
|---|---|---|---|
| Outline Dimension: | 42.72*59.46*2.3 Mm | Active Area: | 36.72*48.96mm |
| Interface: | SPI/ MCU/RGB | Brightness: | 350cd/m2 |
| Display Mode: | Normally Black | Driver IC: | ST7789V |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 2.4 Inch Color TFT Module,Color TFT Module 240x320,240x320 Display 350cd/M2 |
||

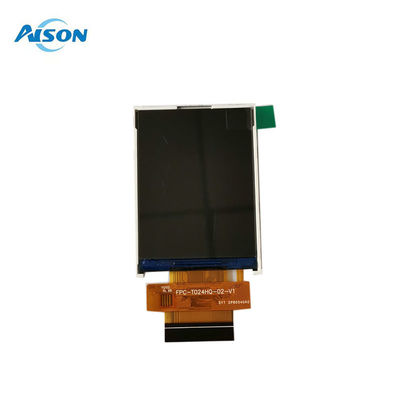

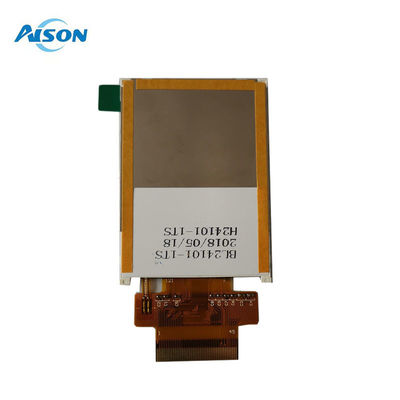

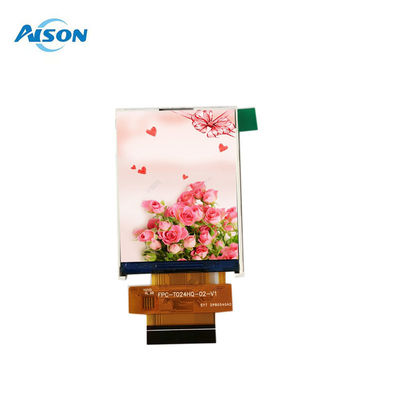

2.4 inch IPS Color TFT Module 240x320 Resolution SPI/ MCU/RGB Interface
Z024Q20 is a 2.4-inch IPS TFT-LCD display module with a resolution of 240 x 320 pixels. The Z024Q20 module is equipped with the ST7789V controller IC, supporting both MCU8080 and SPI interfaces. It features an IPS panel, providing advantages such as a wider viewing angle of Left: 80 / Right: 80 / Up: 80 / Down: 80 degrees (typical), a contrast ratio of 500 (typical value), and a brightness of 350 nits (typical value).
This 2.4-inch TFT-LCD display is in portrait mode and integrates the ST7789V controller IC on the module. The supply voltage for the analog (VCI) ranges from 2.5V to 3.3V. The TFT module can operate within a temperature range of -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C.
General Data
| Model Name | 2.4 inch IPS LCD Module |
| Resolution | 240x320 |
| Model Size (W*H*T) | 42.72*59.46*2.3 mm |
| Display Area (W*H) | 36.72*48.96mm |
| Interface | SPI/MCU/RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 350 cd/m2 |
| Pin number | 45 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 4 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This versatile display is suitable for various applications, including air quality testing, blood glucose measurement, MP3 players, home appliances, as well as specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.
