Product Details:
|
| Product Name: | 7 Inch LVDS TFT LCD Module | Resolution: | 1024X600 |
|---|---|---|---|
| Module Size: | 164.9*100*3.5mm | Active Area: | 154.21 X 85.92mm |
| Interface: | LVDS | Luminance: | 450cd/m2 |
| Display Type: | TFT, Normally Black, Transmissive | Contrast Ratio: | 700:1 |
| Working Temp: | -20℃ To +70℃ | Storage Temp: | -30℃ To +80℃ |
| Highlight: | 450 Cd/M2 Color TFT LCD Module,Color TFT LCD Module 7 Inch,LVDS LCD Screen 1024x600 |
||

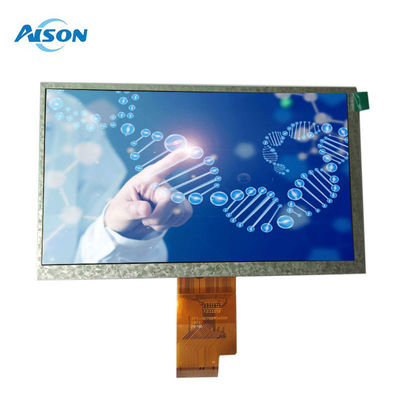

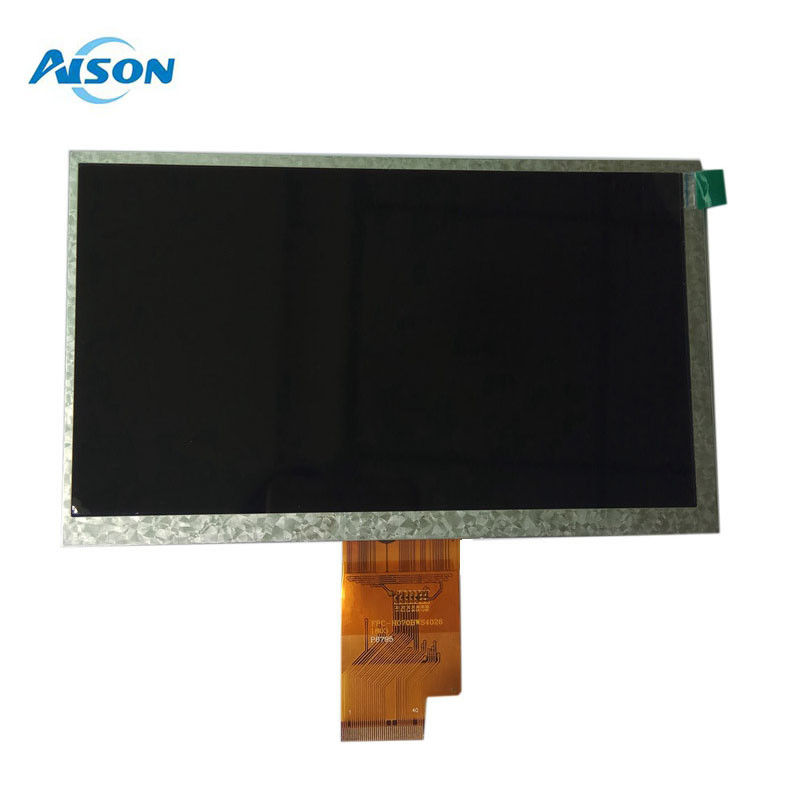

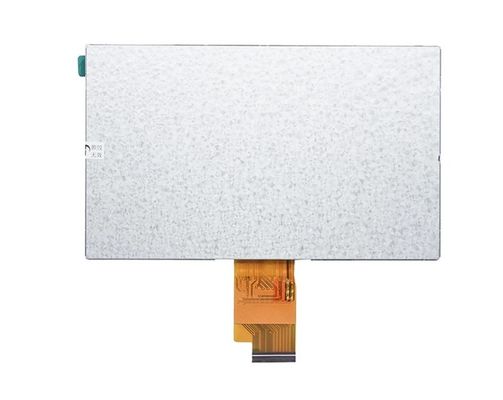

7 inch 1024x600 LVDS TFT LCD Display Module 450cd/m2
The Z070WS15 is a 7-inch IPS transmissive-type color active matrix TFT LCD with a resolution of 1024 x 600 pixels. Equipped with LVDS interfaces, this display is ideal for applications requiring high-speed data transmission due to its exceptional data transfer rate and low power consumption.
Key features include:
This 7-inch LVDS TFT display is specifically designed for various industrial control product applications, offering reliable performance in demanding environments.
General Data
| Model Name | 7 inch IPS TFT LCD Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 164.9*100*3.5 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
