Product Details:
|
| Name: | 10.1 Inch IPS TFT LCD Display | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 235*143*4.9mm | Active Area: | 222.72 X 125.28mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 350 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 1024x600 IPS TFT LCD Display,IPS TFT LCD Display 10.1 Inch,10.1 Inch Display 1024x600 |
||

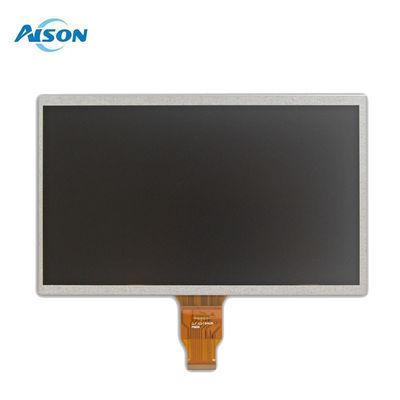

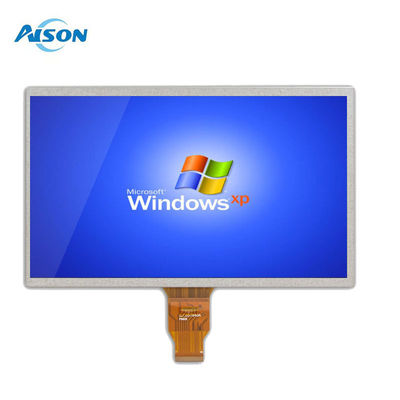

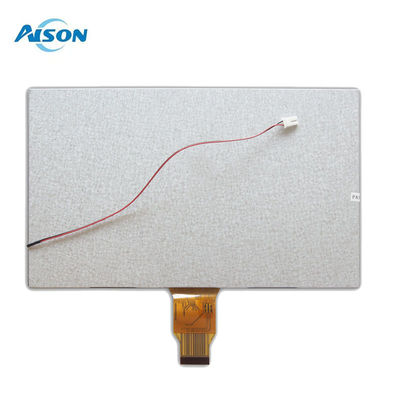

10.1 inch 1024x600 IPS TFT LCD Module Display RGB /LVDS Interface for Industrial Application
Display General Description
Z101WS08 is a landscape mode 10.1 inch IPS TFT LCD module, it featured with resolution 1024x600 pixels. Z101WS08 is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 500 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value).
The supply voltage (VDD) of Z101WS08 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. This 10.1 inch tft module is built to withstand diverse environmental conditions.
General Data
| Product Name | 10.1 inch TFT LCD Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm |
235*143*4.9
|
| Display Area (W*H)mm |
222.72 x 125.28
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 350 cd/m2 |
| Pin number | 50 |
| Viewing Angle | 80/80/80/80 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
