Product Details:
|
| Name: | 9 Inch TFT Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 210.6*126.5*5.3mm | Active Area: | 198 X111.69mm |
| Interface: | 24 Bit RGB | View Direction: | 12 0'clock |
| Brightness: | 500cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 9 Inch TFT Display,TFT Display 500 Nits,500 Nits Display 800x480 |
||

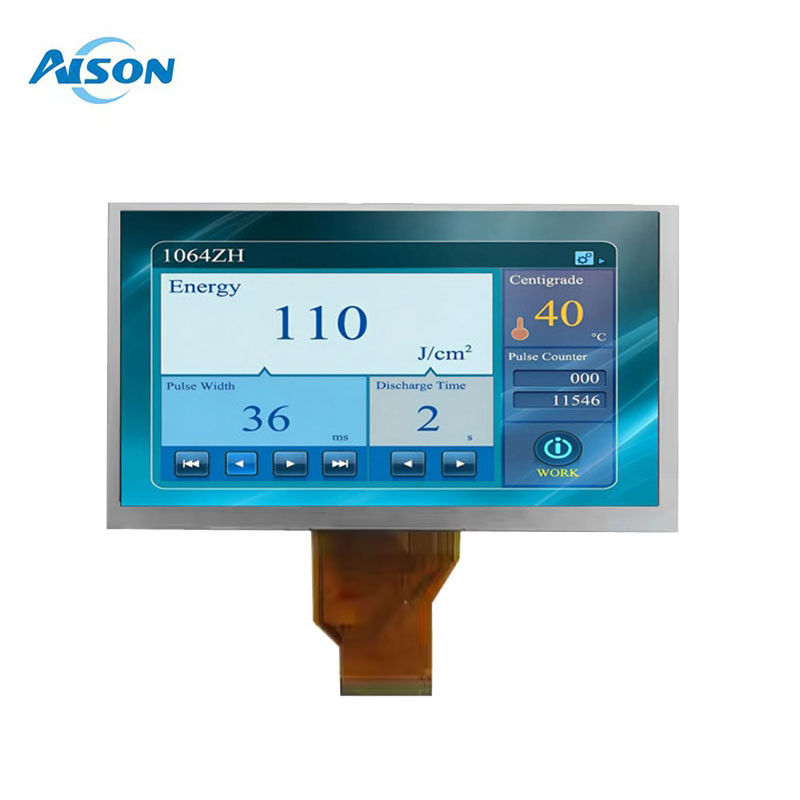

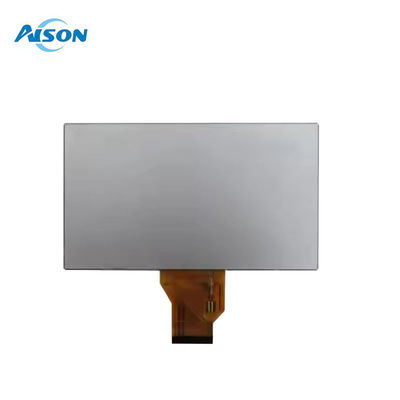

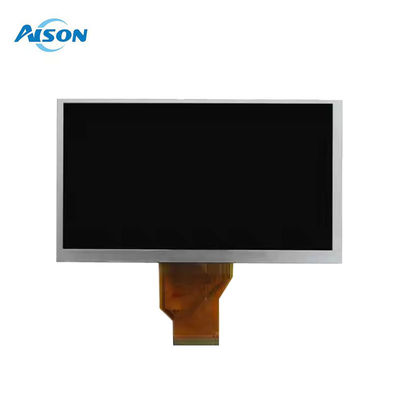

9 inch LCD TFT Display Module 800x480 RGB interface 50pin
Display General Description
The Z090wv01 is an 8 inch TFT LCD module with a resolution of 800x480 pixels, an aspect ratio of 16:9, a brightness of 500 nits (typical value), and a contrast ratio of 500:1. The module has an active area size of 183*141* mm and an outline dimension of 162.05*121.54mm.
The lcd module can operate within a wide temperature range of -20°C to +70°C. The Z091wv01J is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, medical devices.
General Data
| Model Name | 9 inch TFT LCD Display |
| Resolution | 800x480 |
| Model Size (W*H*T) |
210.6*126.5*5.3mm
|
| Display Area (W*H)mm |
198 x111.69mm
|
| Interface | RGB 24 Bit |
| Display Mode | Normally White,Transmissive |
|
Viewing angles
|
70/70/50/70 |
| Brightness | 500 cd/m2 |
| Pin number | 50 |
|
Contrast Ratio
|
500:1 |
| BACKLIGHT TYPE | 30 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
