Product Details:
|
| Name: | 8 Inch Sunlight Readable Display | Resolution: | 1024X768 |
|---|---|---|---|
| Outline Dimension: | 183*141*6.15mm | A.A Size: | 162.05*121.54mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 1000cd/m2 | Working Temperature: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | Sunlight Readable 1000 Nits Display,1000 Nits Display 8 Inch,TFT LCD Module Display 1024x768 |
||

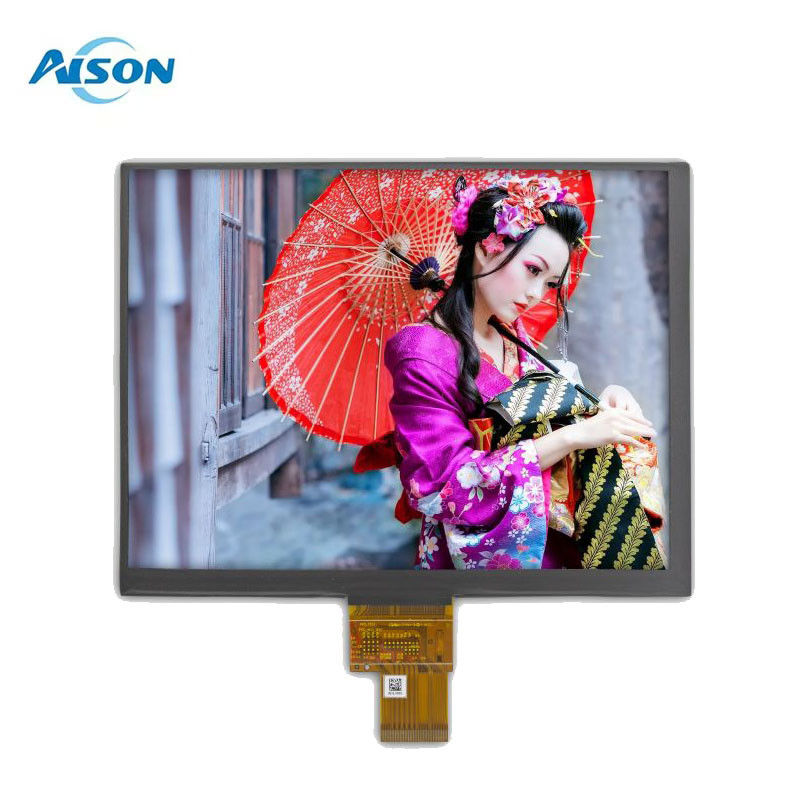

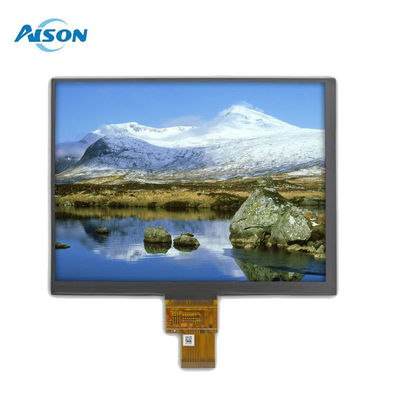

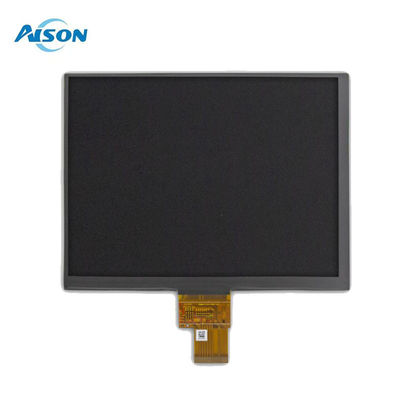

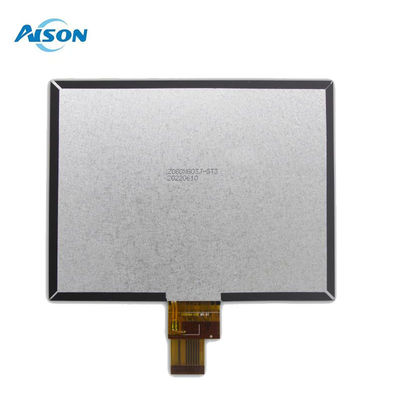

Sunlight Readable 8 inch TFT LCD Module Display 1024x768 LVDS Interface for Industrial
General Description
The Z080XG01J is a high-performance 8-inch TFT LCD module designed for demanding applications. With a resolution of 1024x768 pixels and a 4:3 aspect ratio, this module delivers sharp and vivid visuals. The display features a typical brightness of 1000 nits, ensuring excellent visibility even in bright environments, and a contrast ratio of 800:1 for superior image quality.
The module's active display area measures 183 x 141 mm, with an outline dimension of 162.05 x 121.54 mm, making it compact and easy to integrate into various systems. Its wide operating temperature range of -20°C to +70°C ensures reliable performance in diverse environments.
Engineered for durability and high display quality, the Z080XG01J is an ideal solution for industrial control systems, medical devices, and other applications requiring robust and dependable display technology.
General Data
| Model Name | 8 inch TFT LCD Display |
| Resolution | 1024x768 |
| Model Size (W*H*T)mm |
183*141*6.15
|
| Display Area (W*H)mm |
162.05*121.54
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
