Product Details:
|
| Name: | 7 Inch Display Module | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100.0*5.7mm | Active Area: | 154.08 X 85.92mm |
| Interface: | 24 Bit RGB | Luminance: | 450cd/m2 |
| LCD Type: | Normally White TN,Transmissive | Gray Scale Inversion Direction: | 6 O’clock |
| Highlight: | 7 Inch TFT LCD Display Module,TFT LCD Display Module 800x480,800x480 LCD Display 450 cd/M2 |
||

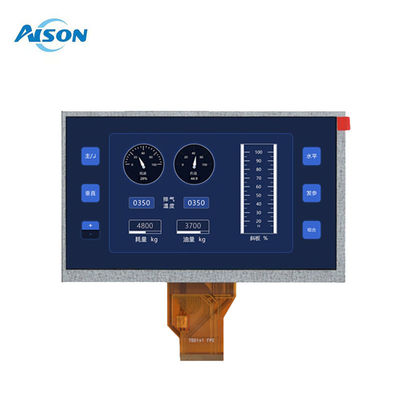

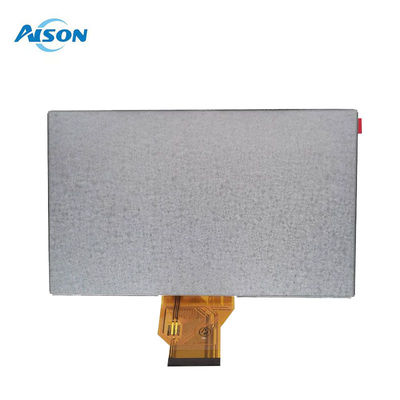

7 inch TFT LCD Display Module 800x480 RGB 50 Pin 450cd/m2
General Data
| Model Name | 7 inch TFT LCD Panel |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*5.7mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 450 cd/m2 |
| Pin number | 50 pin |
| Interface | RGB 24 bit |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7-inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
