Product Details:
|
| Name: | Bar Type LCD Display | Size: | 4.6 Inch |
|---|---|---|---|
| Brightness: | 300 Cd/M2 | Contrast Ratio: | 1200:1 |
| Interface: | 3SPI+18BIT RGB | Storage Temperature: | -30 To 80°C |
| Highlight: | 1200:1 Bar Type LCD Display,Bar Type LCD Display 300 Cd/M2,IPS LCD Screen Transmissive |
||

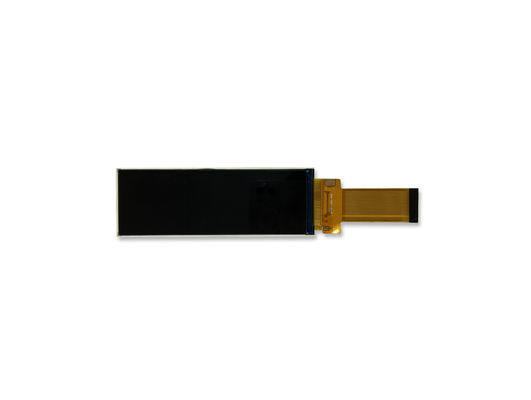

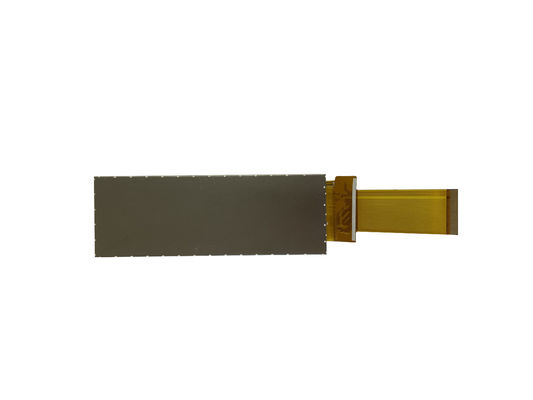

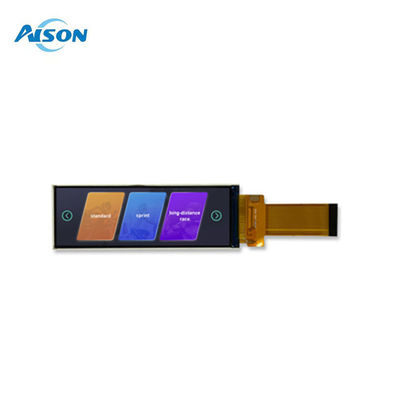

Letterbox LCD 4.6 inch bar LCD display 320*960 for smart home, IoT
1. General Specifications
Z046HD01 is a diagonal 4.6" color active LCD module with LED backlight with RGB interface. This module is a transmissive type display operating in the normally white mode. It supports 320*960 resolutions and can display up to 16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
|
Item |
Contents |
|
PN |
Z046HD01 |
|
Size |
4.6 inch |
|
Outline Size |
41.57*118.8*2.5 mm |
|
Active Area |
36.768 x 110.304 mm |
|
Resolution |
320*960 Pixels |
|
Aspect Ratio |
1:3 |
|
Viewing direction |
IPS, All |
|
Brightness |
300 cd/m² |
|
Contrast ratio |
1200:1 |
|
Interface |
3SPI+18BIT RGB |
|
Operation temperature |
-20 to 70°C |
|
Storage temperature |
-30 to 80°C |
2. Optical Specifications
3. Drawing picture
4. Application
Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement machines/white goods/ Home appliance
