5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC

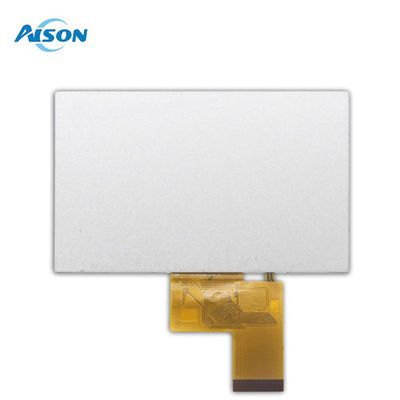

Large Image : 5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z050WV05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	8~12usd/pc
Packaging Details:	Carton/Blister
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC

Description

Name:	5 InchTFT LCD Module	Resolution:	800RGB X 480(WVGA)
Module Size:	120.775.93 Mm	Active Area:	108x64.8 Mm
Interface Type:	24 Bit RGB	Luminance:	500 Nits
Driver Controller:	ILI6137+ILI5960	Glass:	Innolux
Highlight:	5 Inch TFT LCD Module , TFT LCD Module 800x480 , 800x480 Display 500 Cd/M2

5 Inch TFT LCD Module 800x480 Resolution RGB 24 Bit 40pin ILI6137 and ILI5960 Driver IC

Display General Description

High-Resolution Display: This 5-inch LCD display boasts an 800x480 resolution, providing a clear and crisp image with vibrant colors, making it ideal for a wide range of applications.
Wide Viewing Angle: With a 12 o'clock viewing angle, this display offers excellent visibility from multiple perspectives, ensuring that the image remains clear and undistorted even when viewed from the side.
Compact Design: Measuring 120.7x75.9x3 mm, this display is designed to be compact and space-efficient, making it perfect for integration into small devices and applications.
Customizable Options: Available with a touch panel as an optional feature, this display can be tailored to meet specific user requirements, including those specified by the user.
Energy Efficiency: With a low power supply voltage of 2.8V and a luminance of 500 cd/m2, this display is designed to be energy-efficient and minimize power consumption, making it suitable for battery-powered devices.

General Data

Product Name	5 Inch TFT LCD Module
Number of Pixel	800x480
Interface	RGB 24bit
Luminance(cd/m2)	500cd/m2
Active area	120.775.93 mm
LCM (W x H x D)	108x64.8 mm
Viewing Direction(eye)	12 O'clcok
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC 0

Product Details

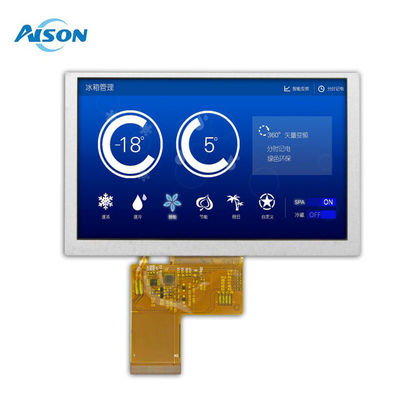

5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC 1

TFT Applications

This 5 inch TFT LCD module is the ideal choice for a range of applications, including dashcams, portable medical devices, measurement instruments, testing equipment, digital photo frames, and small entertainment systems.

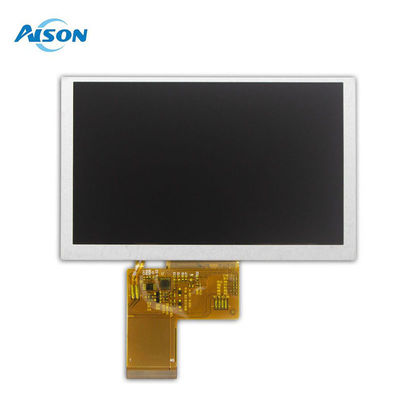

5 Inch TFT LCD Module 800x480 Display 500 Cd/M2 RGB 24 Bit 40pin ILI6137 And ILI5960 Driver IC 2
