Product Details:
|
| Display Type: | 4.3 Inch IPS TFT LCD Display | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.45*67.15*3 Mm | Active Area: | 95.04 X 53.856 Mm |
| Interface Type: | 24 Bit RGB | Brightness: | 500 Cd/m2 |
| Operating Temp: | -20 To 70 Degree | Storage Temp: | -30 To 80 Degree |
| Highlight: | 480X272 IPS TFT LCD Display,IPS TFT LCD Display 4.3 Inch,TFT Touch Screen Display 40 Pin |
||

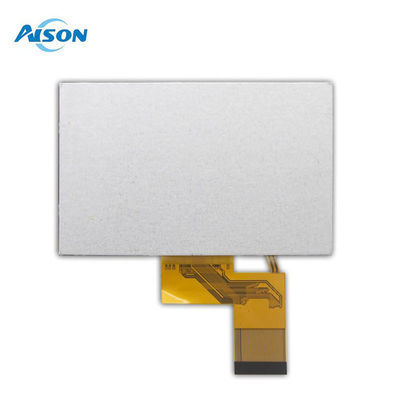

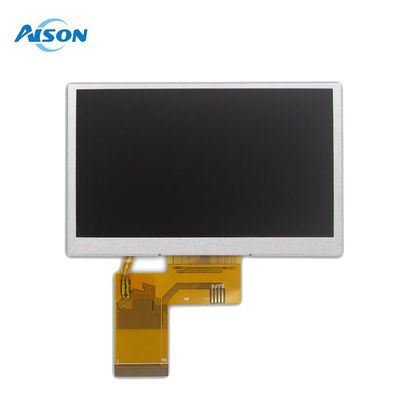

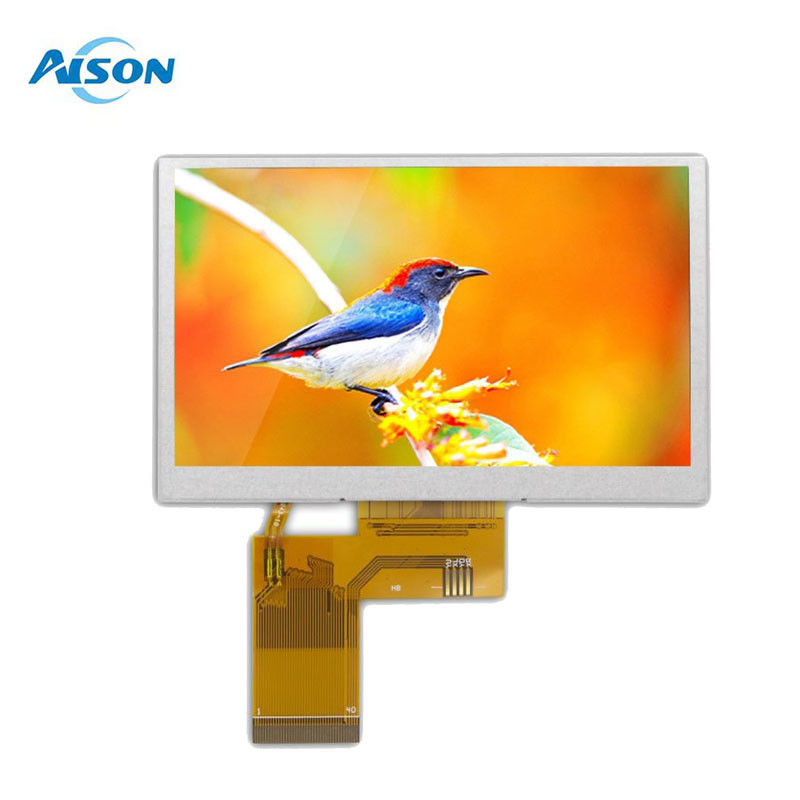

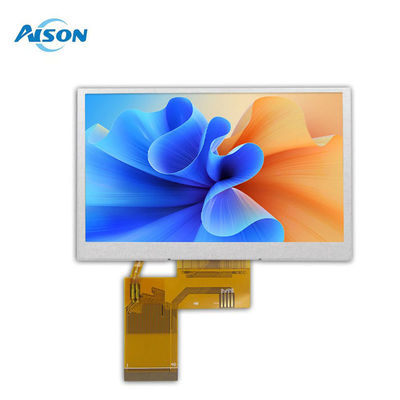

4.3 inch IPS TFT LCD Display 480X272 Resolution RGB 24 Bit 40Pin Interface
The Z043WQ34H is a premium 4.3-inch IPS TFT LCD module produced by AISON. With a 480x272 RGB pixel resolution on a black background, it delivers vivid and lifelike visuals. The lcd module's brightness of 500 cd/m² ensures excellent visibility in diverse lighting conditions, providing a comfortable viewing experience.
Equipped with the reliable ILI6485 driver IC and supporting a 24-bit RGB interface, the 4.3 inch tft display offers consistent and dependable performance. Designed for compatibility with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, this module display is ideal for various applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
To facilitate easy integration, the 4.3 inch tft lcd display features a 40-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling seamless connection to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.
AISON Technology provides customized solutions to meet specific customer needs. Options include FPC customization, cover lens integration, touch screen addition, and driver board customization. Additionally, AISON can supply tailored demo kits upon request, further supporting evaluation and decision-making.
General Data
| Product Name | 4.3 inch IPSTFT LCD Display |
| Number of Pixel | 480x272 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 500cd/m2 |
| Active area | 95.04 x 53.856 mm |
| LCM (W x H x D) | 105.45*67.15*3 mm |
| Viewing Direction(eye) | ALL/IPS |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
