Product Details:
|
| Name: | 3.99 Inch Bar Type LCD Display | Resolution: | 400x960 |
|---|---|---|---|
| Outline Dimension: | 42.9*102.08*2.25 | Active Area: | 39.18 X 94.032mm |
| Interface: | 3SPI+18BIT RGB | Display Mode: | TFT,Normally Black |
| Brightness: | 350cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | IPS Bar Type LCD Display,Bar Type LCD Display 3.99 Inch,HDMI Display Module 400×960 |
||
3.99 Inch 400×960 Ips Bar Type TFT LCD Display With HDMI Board
General Description

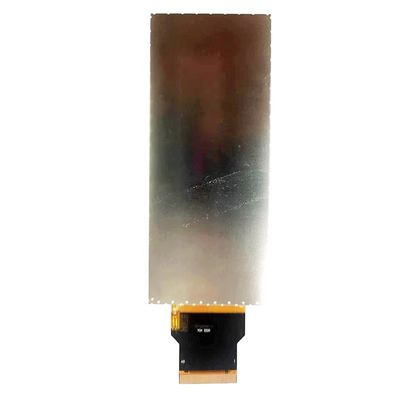

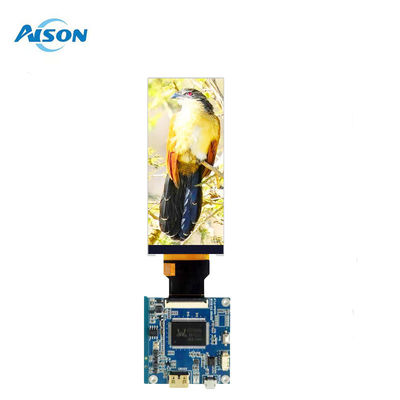

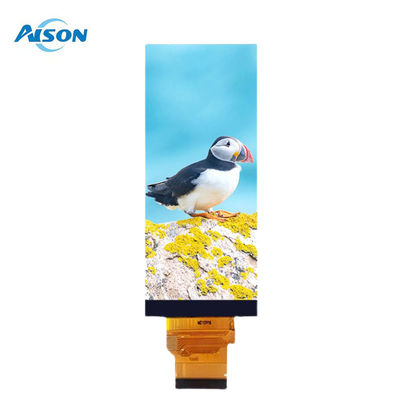

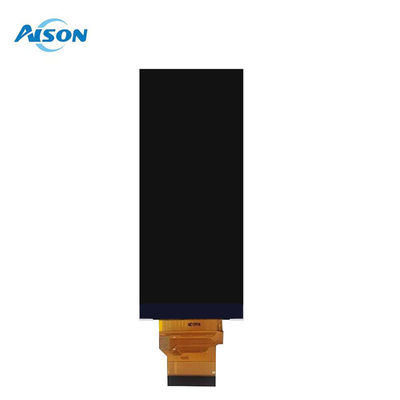

Z0399HD01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 3.99” display area contains 400x960 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.If you need can take the HDMI board for this 3.99 inch bar type lcd module for testing.
Z0399HD01 is a portrait mode 3.99 inch stretched bar type TFT LCD with a resolution of 400X960pixels.Its interface is 3SPI+18 Bit RGB
40Pin with a contrast Ratio 1500:1.
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
General Data
| Model Name | 4 inch Stretched TFT Display |
| Resolution | 400x960 |
| Model Size (W*H*T)mm | 42.9*102.08*2.25 |
| Display Area (W*H)mm | 39.18 x 94.032 |
| Interface | 3SPI+18 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 350 cd/m2 |
| Pin number | 40 pin |
| Driver IC | ST7701S |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The module operates in temperatures ranging from -20℃ to +70℃, and can be stored in temperatures from -30℃ to +80℃. This bar type TFT module is ideal for use in electronic door locks, massage chair control panels, and other devices that require a stretched display screen.
