Product Details:
|
| Name: | 7 Inch Color TFT LCD Display | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*3.5mm | Active Area: | 154.21 X 85.92mm |
| Interface: | LVDS | Brightness: | 450cd/m2 |
| LCD Type: | TFT, Normally Black, Transmissive | Contrast Ratio: | 700:1 |
| Operating Temperatures: | -20℃ To +70℃ | Storage Temperatures: | -30℃ To +80℃ |
| Highlight: | 1024x600 Color TFT LCD Display,Color TFT LCD Display 7 Inch,Transmissive LCD Display 450cd/M2 |
||
7 inch IPS Color TFT LCD Display with LVDS Interface 1024x600 Resoluton

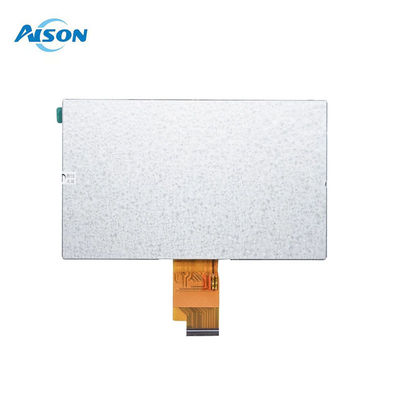

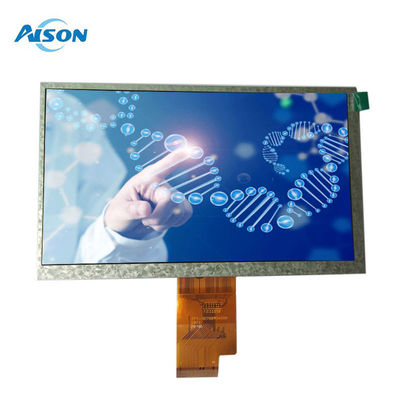

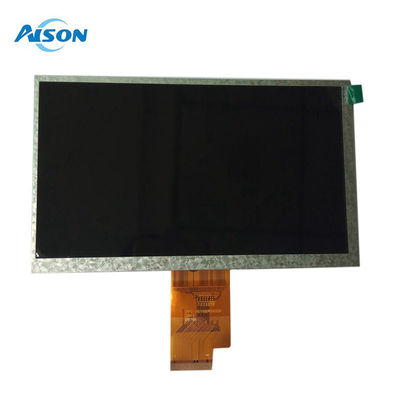

Z070WS15 is a 7-inch IPS transmissive type color active matrix TFT LCD with a resolution of 1024x600 pixels. LVDS interfaces are increasingly popular for TFT displays requiring high-speed data transmission due to their high data transmission rate and low power consumption.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an IPS viewing direction 85/85/85/85. The brightness ranges from 400 nits to 450 nits.
This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
General Data
| Model Name | 7 inch IPS TFT LCD |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 164.9*100*3.5 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 7inch IPS TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.
