Product Details:
|
| LCM Name: | 4.3 Inch SPI TFT LCD Display | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.4*67.15*2.9mm | Active Area: | 95.04 X 53.856 Mm |
| Interface: | SPI /808-MCU | Luminance: | 1000cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Backlight Type: | LED, Normally White | ||
| Highlight: | 480x272 TFT LCD Display,TFT LCD Display 4.3 Inch,4.3 Inch LCD Display SPI |
||

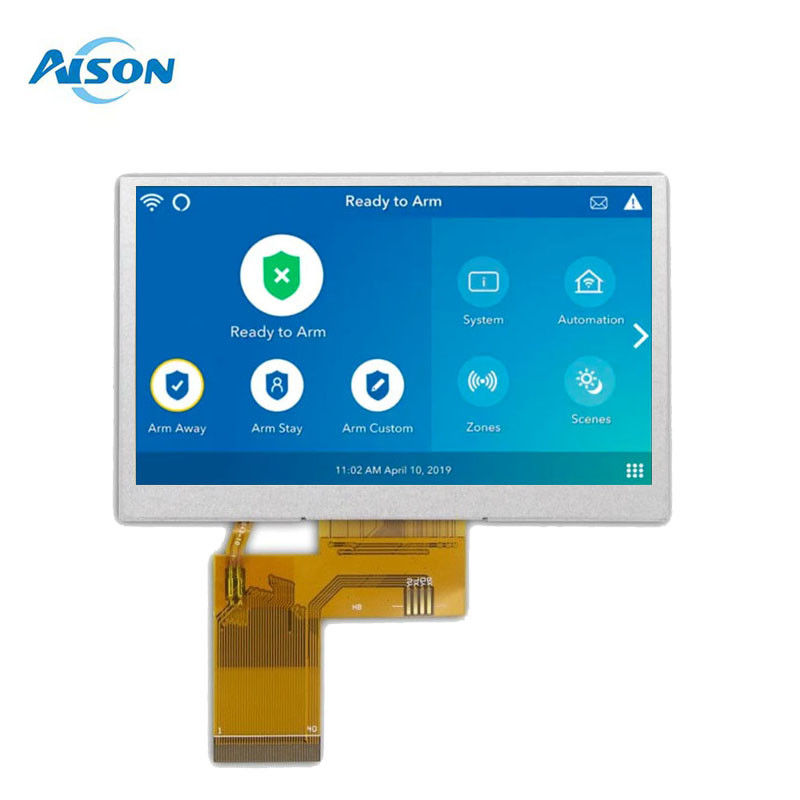

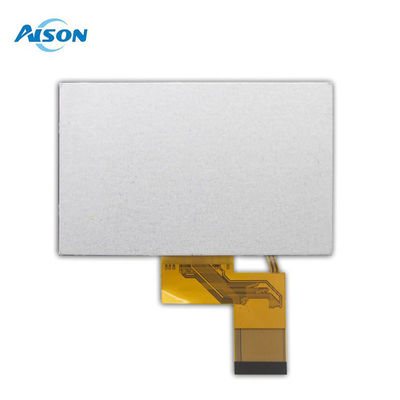

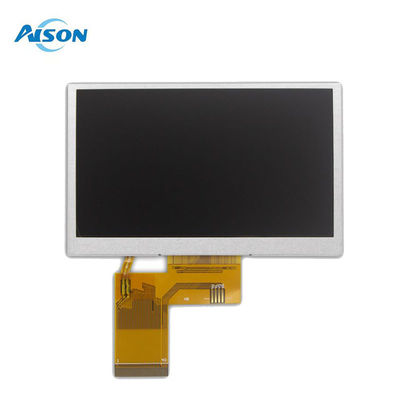

4.3 inch 480x272 IPS TFT LCD Display SPI / 808-MCU Interface
The Z043WQ35J is a premium 4.3-inch IPS TFT LCD module produced by AISON. Featuring a 480x272 RGB pixel resolution on a black background, it delivers an outstanding visual experience. With a brightness of 1000 cd/m², the module ensures clear visibility under various lighting conditions, offering optimal viewing comfort.
Equipped with the reliable NV3041 driver IC and supporting the SPI/808-MCU interface, the 4.3 inch IPS display provides consistent and dependable performance. Designed for compatibility with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, this lcd module is ideal for diverse applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
To simplify the integration process, AISON has designed the 4.3 inch SPI tft display Z043WQ35J for seamless connection. It features a 40-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.
AISON Technology offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, AISON can provide customized demo kits, further assisting in the evaluation and decision-making process.
General Data
| Product Name | 4.3 inch SPI TFT LCD Display |
| Number of Pixel | 480x272 |
| Interface |
SPI /808-MCU
|
| Luminance(cd/m2) | 1000 cd/m2 |
| Active area |
95.04 x 53.856 mm
|
| LCM (W x H x D) |
105.4*67.15*2.9 mm
|
| Viewing Direction(eye) | IPS |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
AISON TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
