Product Details:
|
| Dispaly Name: | 3.5 Inch 320x240 TFT LCD Display | Resolution: | 320x240 |
|---|---|---|---|
| Module Dimension: | 76.90*63.9*3.26mm | AA Size: | 70.08 X 52.56mm |
| Interface: | 24 Bit RGB | Brightness: | 350cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 350cd/M2 TFT Display Module,TFT Display Module 3.5 Inch,320x240 LCD Display 3.5 Inch |
||

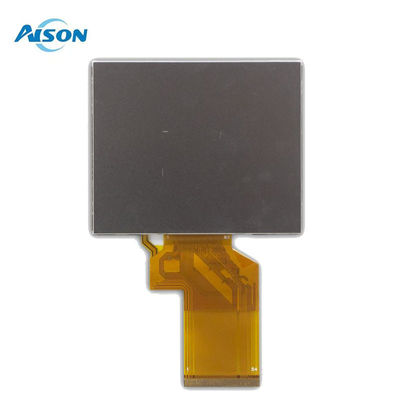

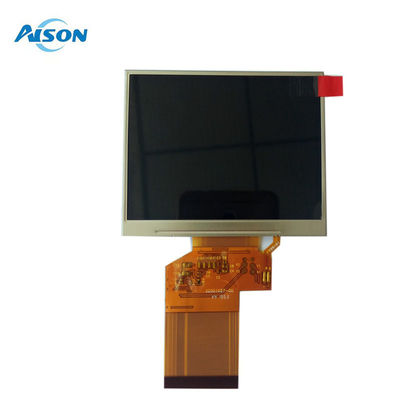

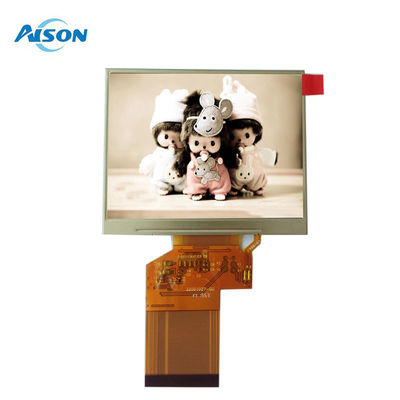

3.5 Inch TFT Display Module 320x240 TN With RGB 24 Bit 54pin Interface
The AISON TFT Z035NC111 is a high-performance and versatile color display module designed for a wide range of applications. Featuring a 3.5-inch TN TFT LCD screen with a resolution of 320x240 RGB pixels and a typical brightness of 350 cd/m², this module delivers crisp and vibrant visuals. It is powered by the HX8238D driver IC and supports a 24-bit RGB interface, ensuring seamless compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.
The 3.5 inch lcd module Z035NC111 is engineered for easy integration, featuring a 54-pin Flexible Printed Circuit (FPC) and FPC-connector mode. This design allows for quick and reliable connections to your PCB's ZIF connector, eliminating the need for complex wiring and saving valuable time during the integration process.
This display module is ideal for embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it a top choice for diverse projects.
AISON Technology offers a range of customizable options to meet your specific needs, including tailored FPCs, integrated cover lenses, touchscreens, and driver boards. We are dedicated to providing optimized display solutions that perfectly align with your preferences. Additionally, we provide customized demo kits upon request, ensuring an exceptional experience with our products.
General Data
| Product Name | 3.5 inch LCD Module |
| Number of Pixel | 320x240 |
| Interface | RGB |
| Luminance(cd/m2) | 350cd/m2 |
| Active area | 70.08 x 52.56mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This 3.5 inch 320x240 tft display is suitable for industrial control, medical equipment, and consumer electronics applications.
