Product Details:
|
| Display Name: | 3.5 Inch 320x240 LCD Module | Dot Arrangement: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*3.26mm | Active Area: | 70.08 X 52.56mm |
| Interface: | 24 Bit RGB | Viewing Direction: | 12 O'clock |
| Operating Temp: | -20 To 70 Degree | Storage Temp: | -30 To 80 Degree |
| Driver IC: | HX8238D | ||
| Highlight: | 3.5 Inch LCD Module,LCD Module 54 Pin,LCD Display 320x240 |
||

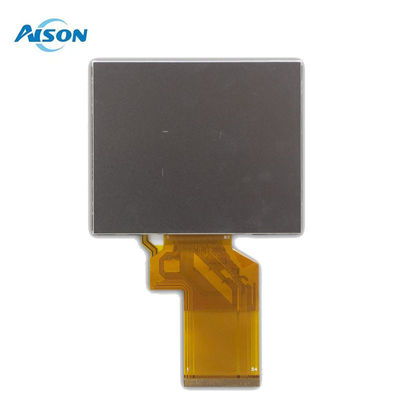

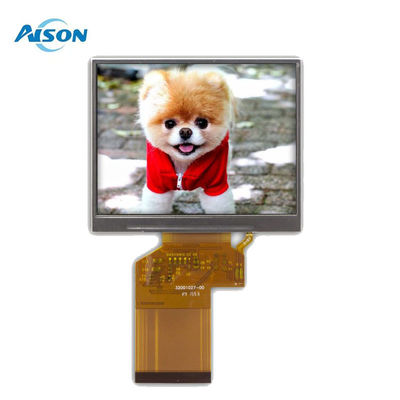

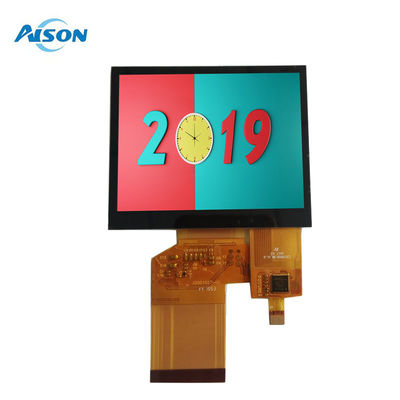

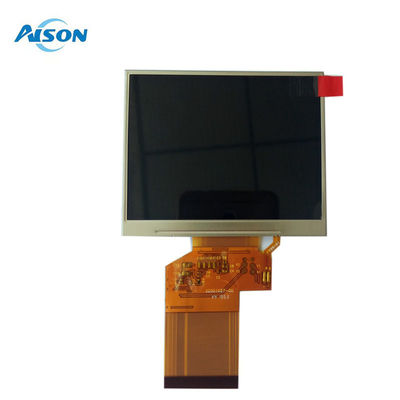

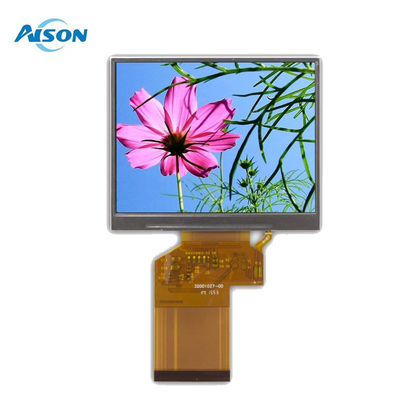

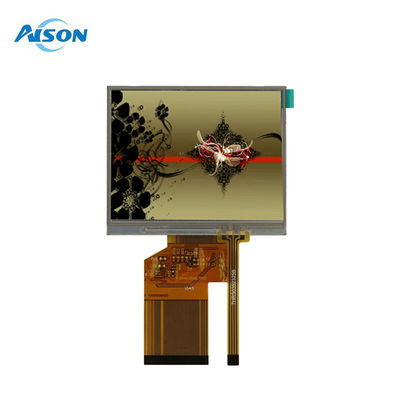

3.5 Inch LCD Module 320X240 Resolution RGB Interface 54 PIN
The Z035NC111 is a 3.5-inch TFT LCD Display Module that combines advanced display technology with a transmissive-type color active matrix TFT LCD, delivering exceptional image quality and performance. Designed with precision, this module shares identical dimensions and active area (AA) with the Z035NC111 model. Specifically, the module measures 76.90*63.9*3.26mm, while the active area (AA) is 70.08 × 52.56 mm.
This 3.5-inch TFT LCD Module features a resolution of 320 × 240 pixels, a superior brightness of 350 cd/m², and an impressive contrast ratio of 300:1, ensuring vibrant and clear visuals for a wide range of applications.
General Data
| Product Name | 3.5 inch LCD Module |
| Number of Pixel | 320x240 |
| Interface | RGB |
| Luminance(cd/m2) | 350cd/m2 |
| Active area | 70.08 x 52.56mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This 3.5 inch 320x240 tft display is suitable for industrial control, medical equipment, and consumer electronics applications.
