Product Details:
|
| Product Name: | 3.5'' 320x240 SPI TFT LCD Display | Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*3.26mm | Active Area: | 70.08 X 52.56mm |
| Interface: | RGB/MCU/SPI | Brightness: | 350cd/m2 |
| View Direction: | 12 O'clock | Driver IC: | SSD2119 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 320x240 SPI TFT LCD Display,SPI TFT LCD Display 3.5 Inch,TFT LCD Modules 60 Pin |
||

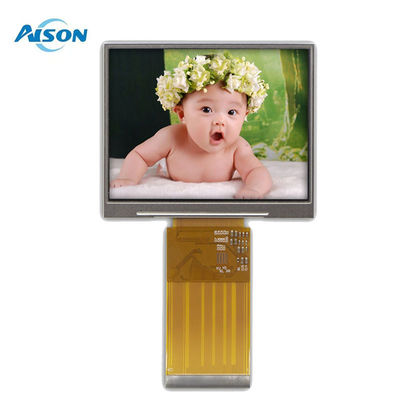

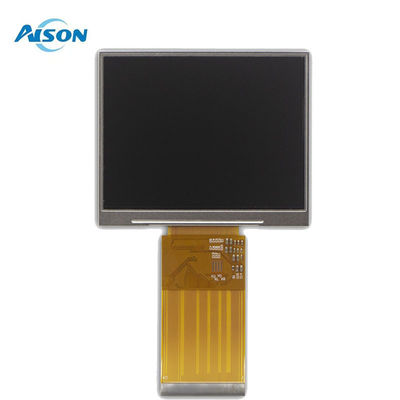

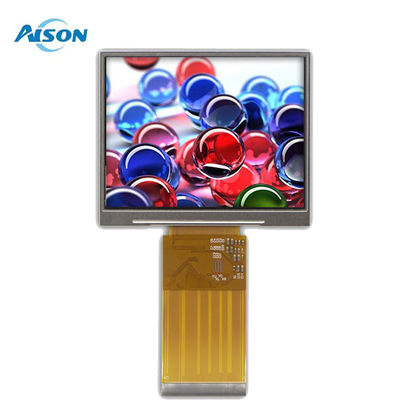

TFT LCD Module 3.5 inch 320x240 RGB Interface 60Pin SSD2119
The AISON TFT Z035Q08 is a versatile and high-performance color display module designed for a wide range of applications. Featuring a 3.5-inch TN TFT LCD screen with a resolution of 320x240 RGB pixels and a typical brightness of 350 cd/m², this lcd module delivers sharp and vibrant visuals. Equipped with the SSD2219 driver IC, it supports a 24-bit RGB/MCU interface, ensuring full compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.

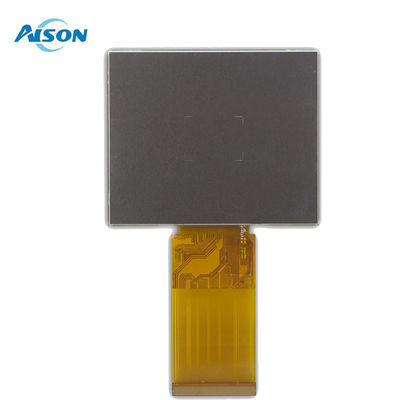

The 3.5 inch tft display Z035Q08 is designed for seamless integration, featuring a 60-pin Flexible Printed Circuit (FPC) and FPC-connector mode. This allows for easy and reliable connections to your PCB's ZIF connector, simplifying integration and saving valuable time during development.
Ideal for embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices, this 3.5-inch TFT module offers excellent adaptability and compatibility for diverse projects.
AISON Technology provides a range of customization options to meet your specific needs, including tailored FPCs, integrated cover lenses, touchscreens, and driver boards. We are committed to delivering optimized display solutions and exceptional customer experiences, including customized demo kits to support your unique requirements.
General Data
| Product Name | 3.5 inch TFT Display |
| Number of Pixel | 320x240 |
| Interface | RGB/MCU |
| Luminance(cd/m2) | 350cd/m2 |
| Active area | 70.08 x 52.56mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
