7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480

Large Image : 7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070WV01-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480

Description

Name:	LCD Display Module	Resolution:	800x480
Outline Dimension:	164.91007.1mm	Active Area:	154.08 X 85.92mm
Interface:	24 Bit RGB	Viewing Angle:	70/70/50/70
Brightness:	400cd/m2	Display Mode:	Normally White
Viewing Direction:	12 O'clock	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree
Highlight:	7 Inch LCD Display Module , LCD Display Module 400 Cd/M2 , TFT LCD Touch Screen 800x480

7 inch 800x480 TN TFT LCD Module Display with Touch Screen

General Description

TFT 7.0” is a TN transmissive type color active matrix TFT liquid crystal display that useamorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

The Z070WV01-CT is a high-quality 7.0-inch TN TFT LCD module manufactured by AISON. It boasts a 800x480 RGB pixel resolution on a black background, delivering an exceptional visual experience. The module's brightness of 400cd/m2 with captouch screen ensures clear visibility in various lighting conditions, providing optimal viewing comfort.

To simplify the integration process,AISONI has designed the Z070WV01-CT for seamless connection. It features a 40-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.

Aison Technology offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, AISON can provide customized demo kits, further assisting in the evaluation and decision-making process.

General Data

Model Name	7 inch TFT Display with touch screen
Resolution	800(RGB)480
Model Size (WHT)mm	164.91007.1mm
Display Area (W*H)mm	154.08 x 85.92mm
Interface	RGB
Display Mode	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	400 cd/m2
Pin number	40
Interface	RGB
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

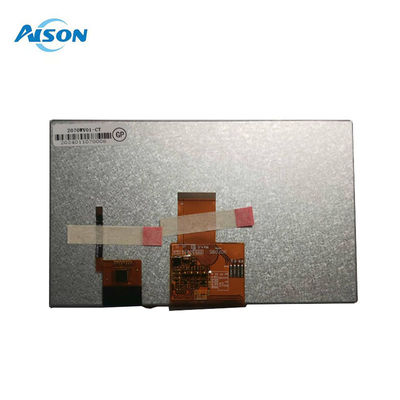

7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480 0

Product Details

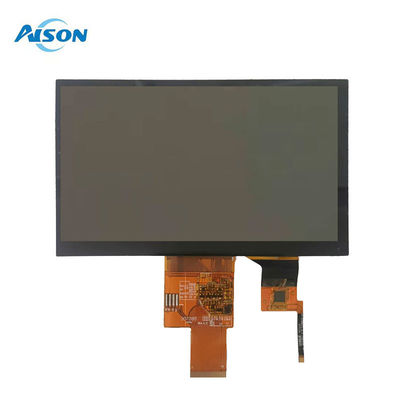

7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480 1

TFT Applications:

The 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

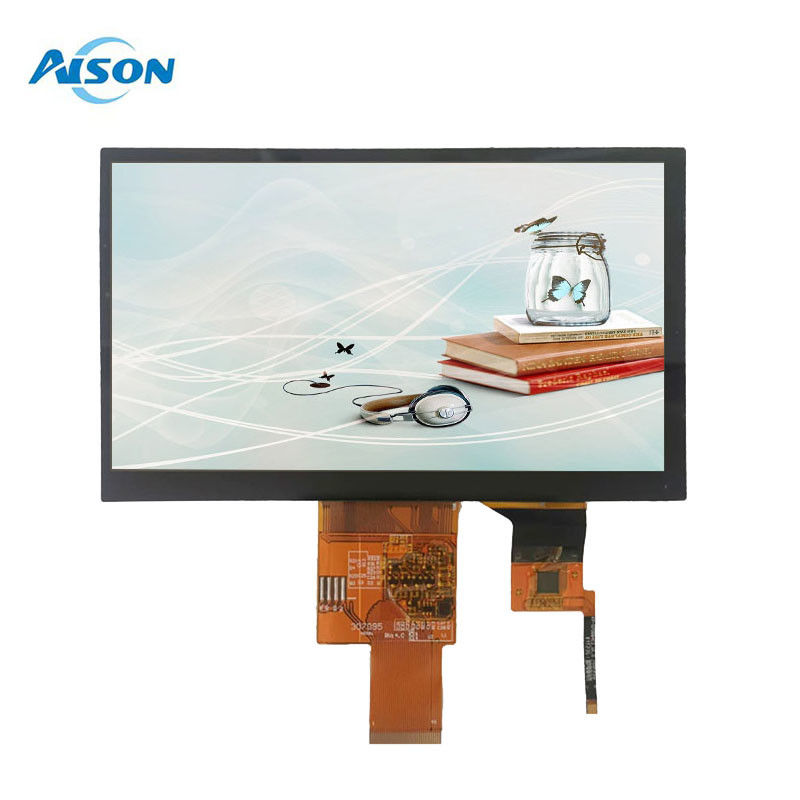

7 Inch LCD Display Module 400 Cd/M2 TFT LCD Touch Screen 800x480 3
