2.8 inch IPS Circular Touch TFT Display MIPI Interface LCD Module 480x480

Large Image : 2.8 inch IPS Circular Touch TFT Display MIPI Interface LCD Module 480x480

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	HD276003C30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

2.8 inch IPS Circular Touch TFT Display MIPI Interface LCD Module 480x480

Description

Name:	2.8 Inch Circular Touch TFT Display	Resolution:	480x480
Active Area:	70.13(H) X70.13 (V)mm	Interface:	MIPI
Driver IC:	ST7701S	Brightness:	300 Cd/m2
Display Mode:	TFT, Normally Black, Transmissive	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree	Touch:	PCAP
Highlight:	2.8 inch round TFT display , IPS circular touch LCD module , MIPI interface TFT display 480x480

2.8 inch IPS Circular Touch TFT Display MIPI Interface LCD Module 480x480

Features:

● 2.8 inch, 480×480 pixels, IPS wide viewing angle circular TFT LCD

● 16.7M color, MIPI 30 Pin interface, 300 cd/m², ST7701S Driver IC

● OCA bonding capacitive touch panel

General Description

High Resolution Display: This 2.8 inch round tft display boasts a high-resolution 480x480 display, ensuring crisp and clear visuals for any application.
Compact Design: With a size of 2.76 inches, this LCD module is perfect for compact devices and applications where space is limited, as requested by a customer looking for a small display solution.
Wide Viewing Angle: The display offers a wide viewing angle, allowing users to view the screen from any direction without compromising image quality.
Durable and Versatile: With operating and storage temperatures ranging from -20 to 70°C and -30 to 80°C respectively, this LCD module can withstand various environmental conditions, making it suitable for various applications.
Customizable: As an OEM supplier, we can provide customized solutions for customers, tailoring the display to meet specific requirements and needs, as requested by a customer seeking a bespoke display solution.

General Data

Model Name	2.8 inch circular lcd module
Resolution	480X480
Model Size (WHT)	73.03x76.48x2.3 mm
Display Area (W*H)	70.13x70.13 mm
Interface	MIPI
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	300 cd/m2
LCD Pin number	40 pin
Driver IC	ST7701S
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

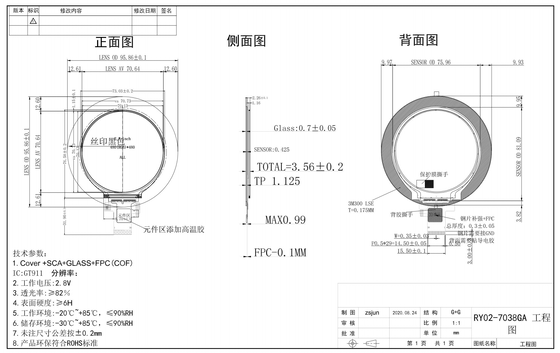

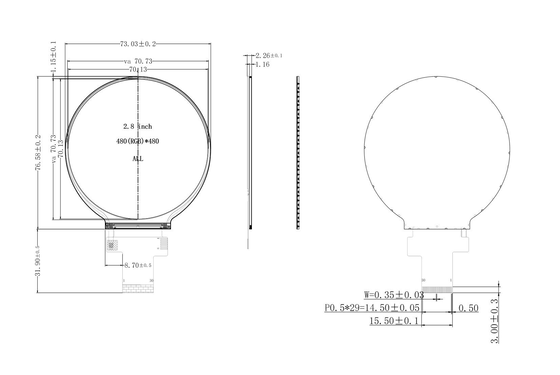

Drawing

Product Details

TFT Applications

2.8 inch Round TFT Display
Ideal for smart home panels, wearables, meters, and round UI devices.
