Product Details:
|
| Product Name: | 1.6 Inch Circular LCD Module | Interface Type: | RGB |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Display Size: | 1.6 Inch |
| Active Area: | 39.840*39.840 | Resolution: | 400*400 |
| Display Mode: | TFT,Normally Black | ||
| Highlight: | 400x400 Circular LCD Module,Circular LCD Module 230nits,Color LCD Screen 1.6 Inch |
||

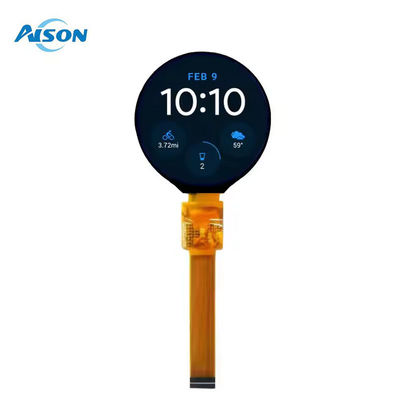

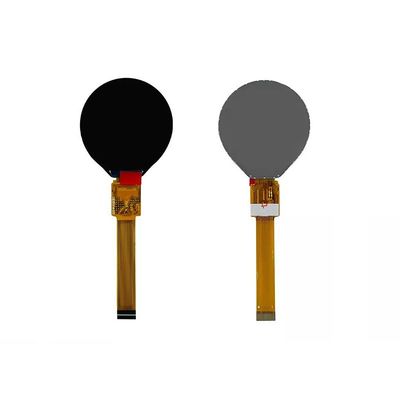

1.6 inch round TFT LCD IPS Module with 400*400 resolution
1. General Specifications
Z016WQ01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC a back light unit. The 1.6 inch display area contains 400x400 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
|
Feature |
Spec |
|
|
Characteristics |
PN |
Z016WQ01 |
|
Size |
1.6 inch |
|
|
Resolution |
400*400 |
|
|
Interface |
QSPI |
|
|
Connect type |
Connector |
|
|
Color Depth |
16.7M |
|
|
Technology type |
a-Si |
|
|
Display Spec. Pixel pitch (mm) |
0.0996x0.0996 |
|
|
Pixel Configuration |
R.G.B. Vertical Stripe |
|
|
Display Mode |
Normally Black |
|
|
Brightness |
230nits |
|
|
Viewing Direction |
ALL |
|
|
Mechanical |
LCM (W x H x D) (mm) |
42.92*45.87*2.2 |
|
Active Area(mm) |
39.840*39.840 |
|
|
With /Without TSP |
Without |
|
|
Weight (g) |
TBD |
|
|
LED Numbers |
2 LEDs |
|
|
Operating Temperature |
-20~70°C |
|
|
Storage Temperature |
-30~80°C |
|
2. Optical Specifications
3. Drawing picture
4. Application
Smart Watch, white goods, wrist watch
