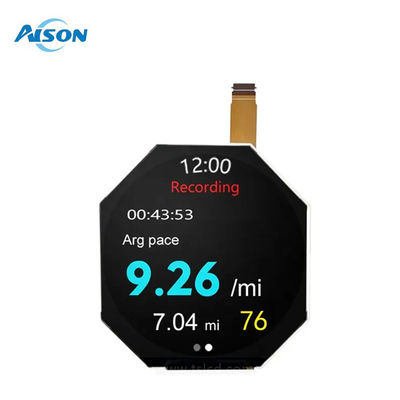

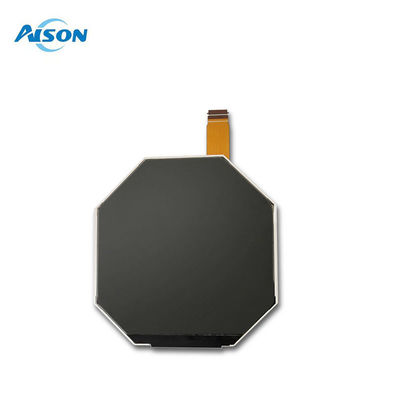

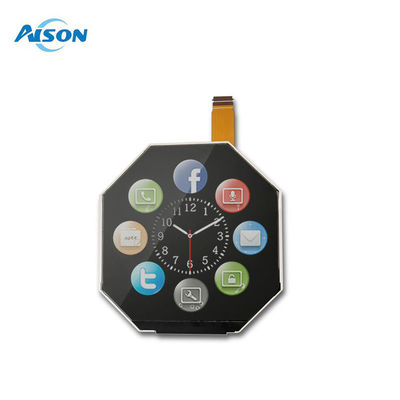

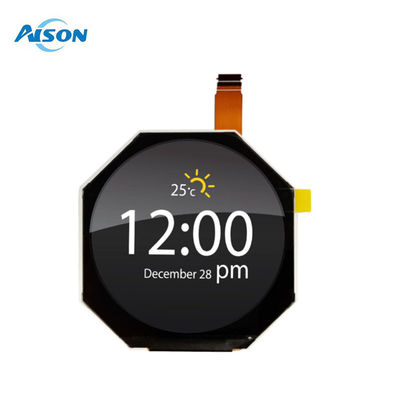

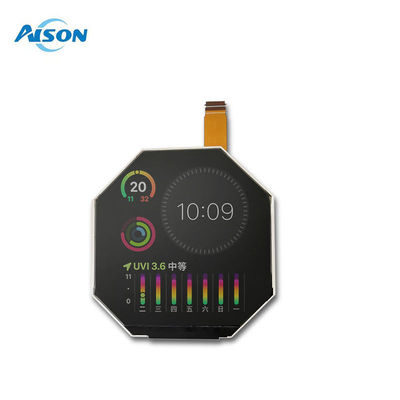

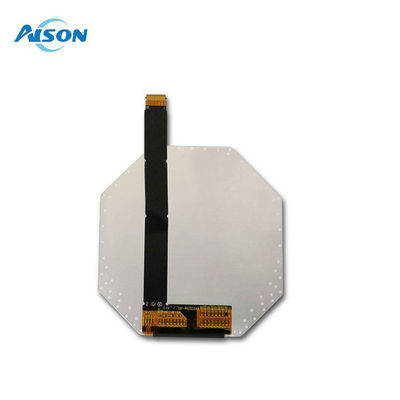

2.47 inch 480*480 IPS MIPI Circular TFT LCD Module 2.5inch Round LCD Screen Display Panel HX8379-C 35Pin

Large Image : 2.47 inch 480*480 IPS MIPI Circular TFT LCD Module 2.5inch Round LCD Screen Display Panel HX8379-C 35Pin

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	EV025Z6M-J80

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

2.47 inch 480*480 IPS MIPI Circular TFT LCD Module 2.5inch Round LCD Screen Display Panel HX8379-C 35Pin

Description

Item:	2.47 Inch Round Display Module	Resolution:	480x480
Outline Dimension:	69.19× 71.74× 2.45mm	Display Area(A.A):	62.64 × 62.64mm
Interface:	MIPI DSI	Driver IC:	HX8379-C
Display Mode:	TFT, Normally Black, Transmissive	Operating Temperatures:	-10 To 60 Degree
Storage Temperatures:	-30 To 70 Degree
Highlight:	2.47 inch circular TFT LCD module , 480x480 IPS round LCD screen , MIPI display panel with 35Pin

2.47 inch 480*480 IPS MIPI Circular TFT LCD Module 2.5inch Round LCD Screen Display Panel HX8379-C 35Pin

General Description

1.0 GENERAL DESCRIPTION

1.1 Introduction

EV025Z6M-J80 is a color active matrix TFT-LCD Panel using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel, a driving circuit and a back light system. It is a transmissive type displayoperating in the normal black. This TFT-LCD has a 2.47 inch diagonally measured active area with Z6 resolutions (480 horizontal by 480 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 16.7M colors.

1.2 Features

0.4t Glass (Single)

Thin and light weight

High luminance and contrast ratio, wide viewing angle

Module Design

RoHS Compliant

1.3 Application

Healthcare & Industrial

General Data

Model Name	2.8 inch circular tft display
Resolution	480X480
Model Size (WHT)	73.03x76.48x2.3 mm
Display Area (W*H)	70.128x70.128 mm
Interface	RGB
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	300 cd/m2
LCD Pin number	40 pin
Driver IC	ST7701
Operating temperatures	-20 to 70 ℃
Storage temperatures	-30 to 80 ℃

Drawing

Product Details

TFT Applications

This 2.8 inch round lcd module is perfect for user-friendly applications in smart home devices, instruments, systems, wearables,

medical devices and consumer electronics.
