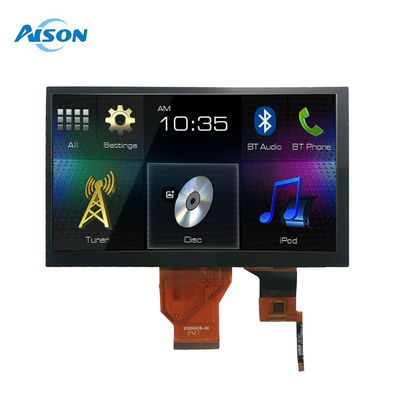

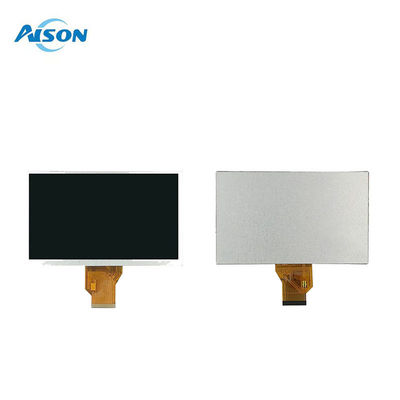

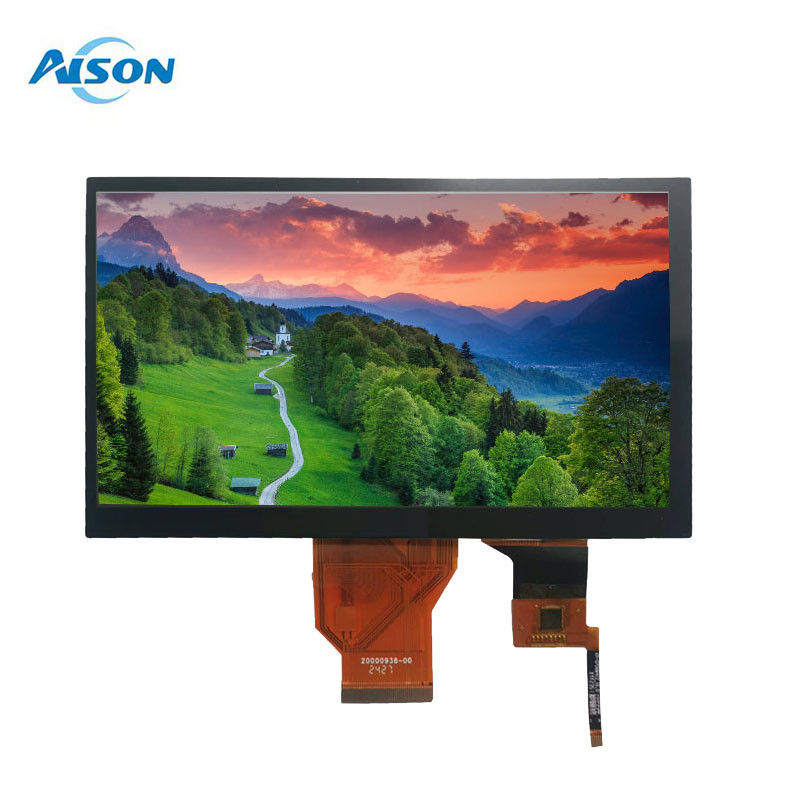

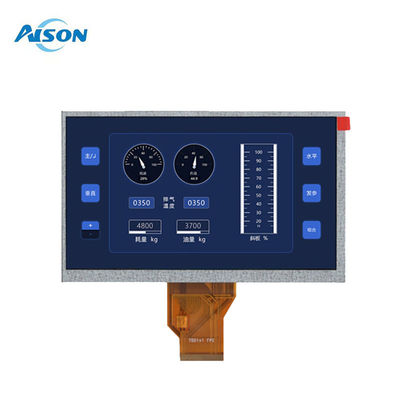

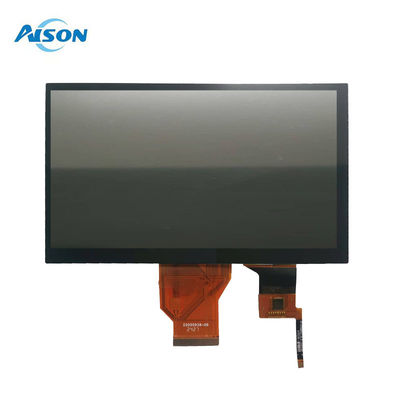

7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface

7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface
7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface
7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface

Large Image :  7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z070WV53-CT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable based on quantity
Packaging Details: Carton/Blister Package
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Contact Now

7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface

Description
Name: 7 Inch IPS TFT Capacitive Touch Screen Resolution: 800x480
Outline Dimension: 164.9*100.0*7.2mm Active Area: 153.84 X 85.63mm
Interface: 24 Bit RGB Luminance: 400cd/m2
LCD Type: TFT, Normally Black, Transmissive Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree Touch Controller: GT911
Viewing Angle: 85/85/85/85
Highlight:

IPS TFT Display Touch Panel

,

7 Inch 800x480 IPS TFT Display

,

Touch Panel IPS TFT Display

Capacitive Touch Display TFT 7 inch 800x480 TFT Display RGB 50Pin



General Description

TFT 7.0” is an IPS transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.


The Z070WV53-CT is a 7-inch 800x480 TFT LCD with a capacitive touch function. The dimensions of the display are 165x100mm, with an active area of 153.84x85.63mm. This TFT LCD has a resolution of 800×480 pixels and a brightness of 400 cd/㎡.



Besides, this 7" capacitive touch TFT LCD uses the integrated circuit ST7277 with an RGB 50 pin interface. This 7 inch lcd  module operating temperature range from -20°C to +70°C; the storage temperature covers a range of -30°C to +80℃.



General Data

Model Name 7 inch IPS Touch TFT Display
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9*100*7.2mm
Display Area (W*H)mm 153.84 x 85.63mm
Interface RGB
Display Type Normally Black,Transmissive
Viewing ALL/IPS
Brightness 400 cd/m2
Pin number 50
Interface RGB
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree





Drawing

7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 0



Product Details

7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 1



TFT Applications

These tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.





7 Inch 800x480 IPS TFT Display Touch Panel 50 Pin RGB Interface 2
