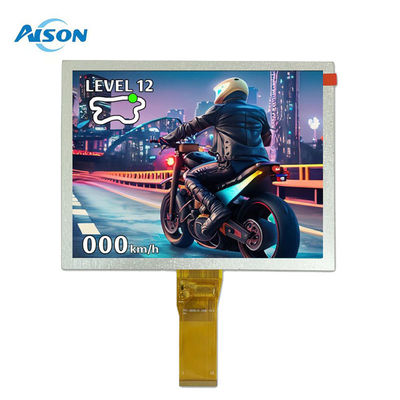

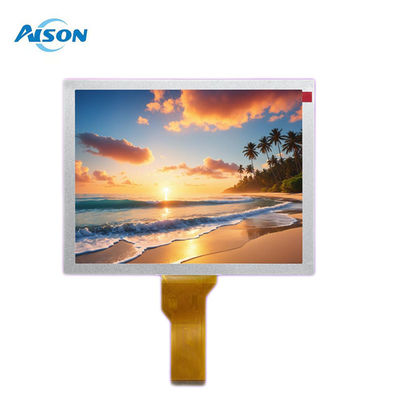

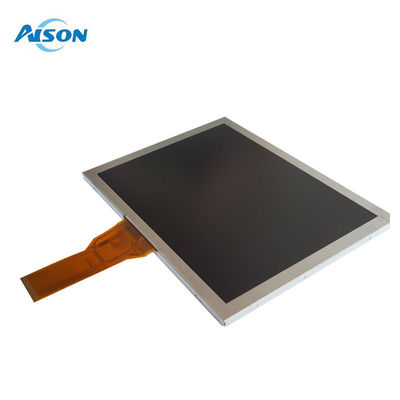

Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits

Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits
Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits

Large Image :  Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: ZT080WS04
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 15~35usd/pc
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 200k/month
Contact Now

Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits

Description
LCM: 8 Inch 800x600 Color TFT LCD Display Resolution: 800x600
Module Dimension: 182.9*141*5.5mm Active Area: 162*121.5mm
Interface: 24 Bit RGB Display Mode: Normally Black, Transmissive
Working Temperatures: -20 To 70 Degree Storage Temperatures: -30 To 80 Degree
Driver Controller: JD9165A-A3
Highlight:

Sunlight Readable TFT LCD Display

,

RGB 24bits IPS TFT LCD Display

,

1000 nits IPS Color TFT LCD

Sunlight Readable 8 Inch 800x600 Color TFT LCD Display With RGB 24bits Interface 1000 nits

General Description



8-inch Industrial IPS TFT LCD Resolution 800x480 Brightness 1000cd/m2

This 8inch is developed with a standard 800x480 high-resolution IPS display and RGB interface. The IPS technology delivers sunlight-readable image quality with higher brightness, better color reproduction, image consistency, and optical characteristics at any angle. The true color LCD display is RoHS compliant and can be applied to multiple industrial applications.




High-Quality Display: This 8-inch TFT LCD Module features an impressive 800x600 resolution, delivering a clear and crisp visual experience for industrial control equipment applications.



Wide Viewing Angles: Equipped with In-Plane Switching (IPS) technology, this 8 inch tft display offers a wide viewing angle, ensuring optimal visibility from various positions.



Vibrant Colors: The 8 inch lcd screen delivers 16.7 million display colors, providing a rich and immersive visual experience for industrial control and monitoring applications.



Durable and Rugged: Designed to operate in harsh conditions, this display functions within a wide temperature range (-20°C to 70°C) and has a storage temperature range of -30°C to 80°C, making this 8 inch IPS TFT -LCD ideal for demanding environments.



High Brightness and Contrast: With a luminance of 1000 cd/m² and a contrast ratio of 800:1, this 8 inch IPS display ensures clear visibility even in bright environments.


General Data

Model Name 8 inch IPS TFT Display
Resolution 800X600
Model Size (W*H*T)mm
182.9*141*5.5 mm
Display Area (W*H)mm
183x141x6mm
Interface 24 Bit RGB
Display Mode Normally Black,Transmissive
Viewing ALL
Brightness 1000 cd/m2
Pin number 50
Viewing Angle 80/80/80/80
BACKLIGHT TYPE 27 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree



Drawing
Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 0Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 1Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 2

Product Details
Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 3Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 4

TFT Applications:

This 8 inch 4:3 TFT LCD module is versatile and suitable for a wide range of applications:
 Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

Sunlight Readable 8 Inch 800x600 IPSColor TFT LCD Display With RGB 24bits Interface 1000 nits 5
