Product Details:
|
| Proeduct Name: | 3.4 Inch Circular Touch Display | Resolution: | 800x800 |
|---|---|---|---|
| Outline Dimension: | 94.9 (H)*96.95 (V)*2.22(D) | Active Area: | 87.6(W) ×87.6 (H) Mm |
| Interface: | MIPI | Brightness: | 300cd/m2 |
| Display Mode: | TFT, Normally Black, Transmissive | Driver Controller: | JD9365DA |
| Working Temperatures: | -20 ℃ ~+ 70 ℃ | Storage Temperatures: | -25℃~ +75℃ |
| Touch: | Yes |

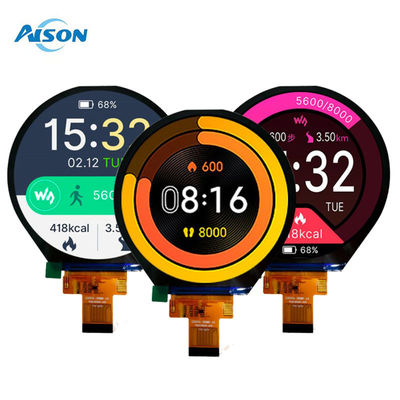

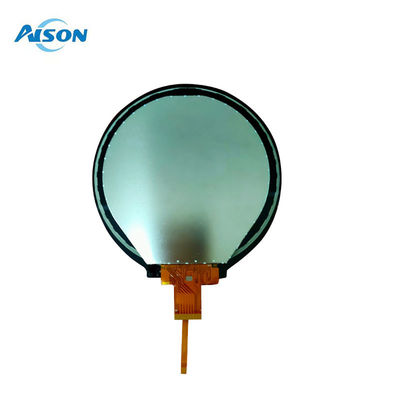

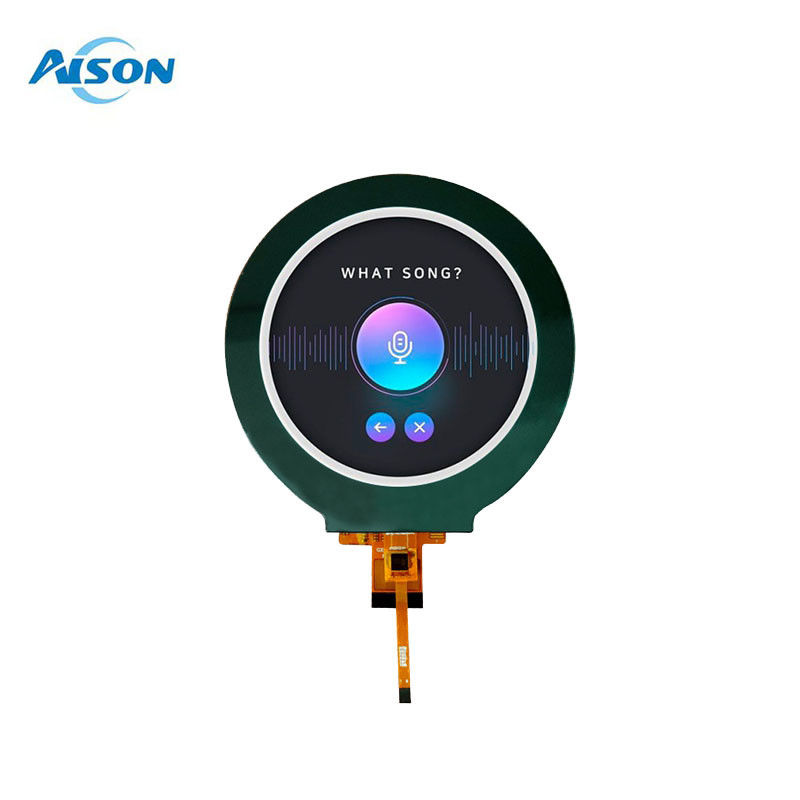

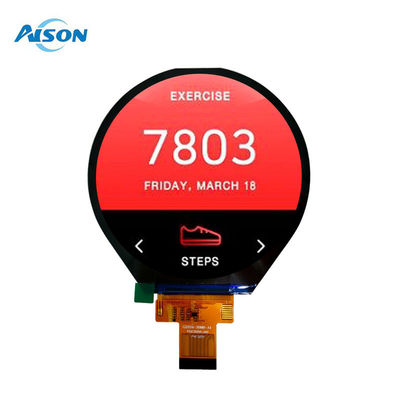

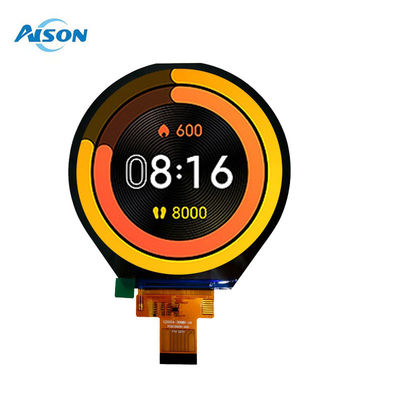

3.4 Inch 800*800 Circular TFT LCD Display MIPI Interface 30 Pin for Smart Home Industrial Control
General Description
Product Description: Z034-30MB-A1
The Z034-30MB-A1 is a 3.4-inch circular screen IPS TFT display with a resolution of 800x800 pixels. Utilizing advanced IPS (In-Plane Switching) technology, this display offers fast and stable response times, high-frequency transmittance, and superior color reproduction. A key advantage of IPS technology is its wide viewing angles, measuring 85 degrees in all directions (up, down, left, and right).
The module dimensions are 94.9 x 96.95 mm, with an active display area of 87.6 x 87.6 mm. Equipped with a built-in JD6365DA driver IC, this display supports MIPI interfaces for seamless integration. The contrast ratio is 1200:1, and the typical brightness is 300 cd/m².
This 3.4-inch LCD operates within a temperature range of -20°C to +70°C and can be stored in conditions ranging from -25°C to +75°C. Designed for a variety of applications, this circular TFT display is ideal for home appliances, electronic alarm clocks, cocktail machines, and other devices requiring a circular display solution.
General Data
| Product Name | 3.4 inch Circular TFT Display with PCAP |
| Number of Pixel | 800x800 |
| Interface | MIPI |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 87.6(W) ×87.6 (H) mm |
| LCM (W x H x D) | 94.9 (H)*96.95 (V)*2.22(D)mm |
| LCD Driver IC | JD9365DA |
| Display Mode | Normally Black |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -25 to 75 degree |
Drawing
The 3.4 inch circular display is suitable for many applications requiring this type of display. The manufacturer suggests its use in household appliances, electronic watches, entertainment machines that use round screens, among others. It can also be used in smart home systems, industrial, medical and automotive devices requiring round displays with good image quality.
In addition to its high-quality optical and electrical performance, the display also features a modern design and easy integration into a variety of end devices, making it suitable for use in innovative consumer electronics projects.
