Product Details:
|
| Name: | 3.4 Inch Circular Display | Resolution: | 800x800 |
|---|---|---|---|
| Outline Dimension: | 94.9 (H)*96.95 (V)*2.22(D) | Active Area: | 87.6(W) ×87.6 (H) Mm |
| Interface: | MIPI | Viewing Angle: | 85/85/85/85 |
| Brightness: | 300cd/m2 | Display Mode: | TFT, Normally Black, Transmissive |
| Driver IC: | JD9365DA | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -25℃~ +75℃ | Touch: | Optional |

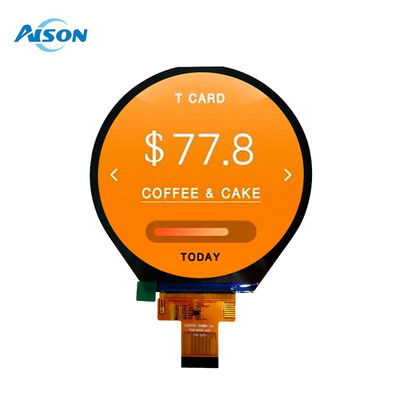

3.4 Inch 800*800 Circular TFT LCD Display MIPI Interface 30 Pin for Smart Home Industrial Control
General Description
Z034-30MB-A1 is a 3.4inch Circular Screen IPS TFT Display with a resolution of 800x800 dots. It uses IPS (In-plane Switching) technology to achieve fast and stable response time, higher frequency transmittance, and better color performance. The most significant advantage of IPS is the wider viewing angles of up: 85/ down: 85/ left: 85/ right: 85 degrees. This circular TFT display has the module dimensions of 94.9 x 96.95 mm and the active area of 87.6 x 87.6 mm. It boasts a built-in JD6365DA driver IC, supporting MIPI interfaces. The contrast ratio of the module is 1200:1, the brightness is 300cd/m2 (typical value).
The operating temperature range of this 3.4" LCD is from -20℃ to +70℃, and the storage temperature range covers from -25℃ to +75℃. The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.
General Data
|
Screen size
|
3.4 inch round tft lcd display
|
|
Number of Pixels
|
800*3(R.G.B)*800
|
|
Active Area
|
87.60*87.60
|
|
Display Mode
|
Normally Black
|
|
Pixel Pitch (Sub Pixel)
|
36.5(H) x 109.5(V)
|
|
Display Colors
|
16.7 M
|
|
Interface
|
MIPI
|
|
Display mode
|
Normally Black
|
|
Luminance
|
300cd/m2
|
|
Drive IC
|
JD9365DA
|
|
Backlight Type
|
LED(white 8*LED)
|
|
Operating temperature
|
-20-70 ℃
|
|
Storage temperature
|
-25-75 ℃
|
|
Contrast ratio
|
1200:1
|
| Tocuh |
PCAP
|
Drawing
