Product Details:
|
| Name: | 5 Inch Circular Touch LCD Display | Resolution: | 1080x1080 |
|---|---|---|---|
| Outline Dimension: | 148.1*148.1*3.205mm | Active Area: | 127.01 (H) *127.01 (V)mm |
| Interface: | HDMI | View Direction: | ALL |
| Luminance: | 300 Cd/m2 | Display Mode: | Normally Black |
| Power: | USB Power Supply | ||
| Highlight: | 1080x1080 TFT Display,5 Inch TFT Display,Rouch Touch TFT Display |
||

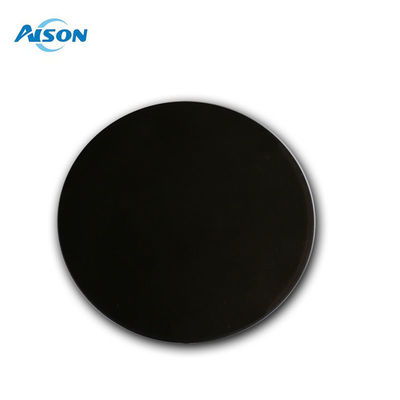

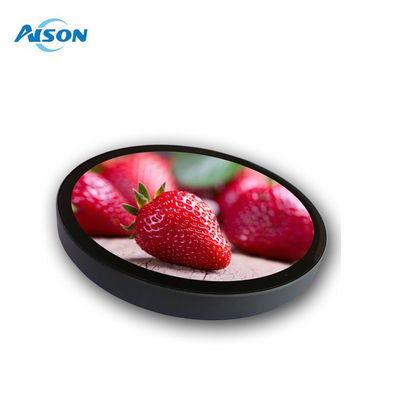

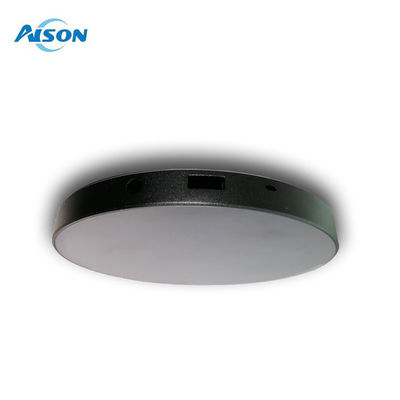

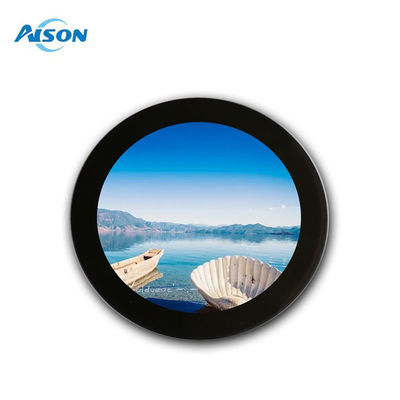

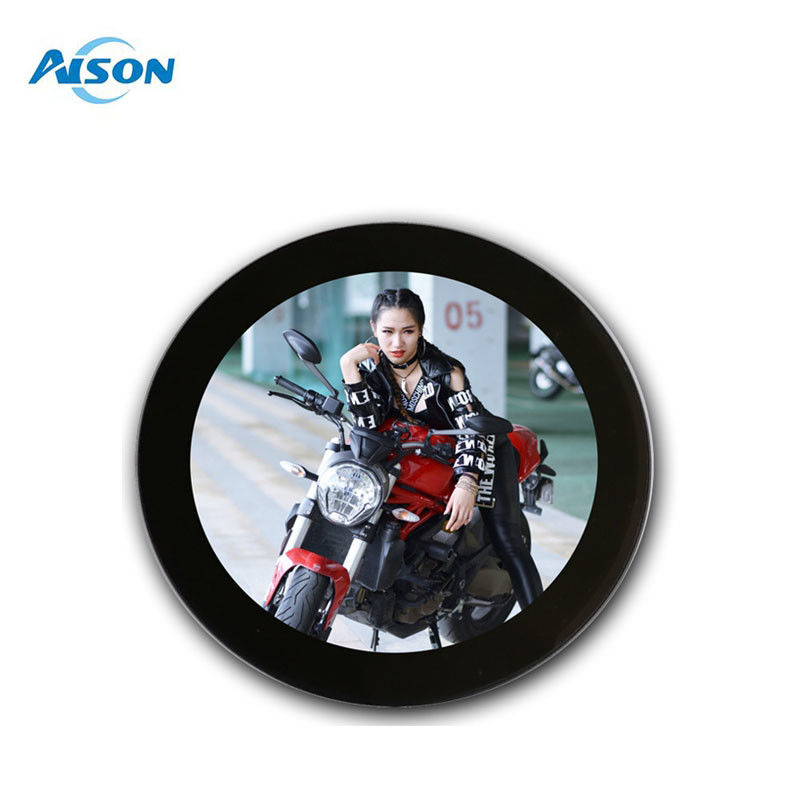

5 Inch 1080x1080 Rouch Touch TFT Display with Enclosure
General Description
The Z050YMM-J40-68P0C is a high-quality, circular 5.0-inch IPS TFT LCD module produced by BOE. Featuring a stunning 1080x1080 RGB pixel resolution on a black background, it delivers an exceptional visual experience. With a brightness of 300 cd/m², this module ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
Equipped with the reliable HX8399C driver IC and supporting the MIPI 4 Lane interface, the 5 inch round touch display guarantees consistent and dependable performance. Designed for compatibility with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, this round lcd module is ideal for diverse applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
The 5 inch round touch display module features a Flexible Printed Circuit (FPC) with a Board-to-Board (B2B) connector, enabling seamless and direct connection to the B2B connector on your PCB. This design simplifies integration and ensures a secure, reliable connection.
| Product Name | 5 inch Circular TFT Display with PCAP |
| Number of Pixel | 1080x1080 |
| Interface | Mini HDMI |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 127.01 (H) *127.01 (V)mm |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
