Product Details:
|
| Product Name: | 5 Inch Round Touch Display | Resolution: | 1080x1080 |
|---|---|---|---|
| Module Dimensions: | 148.1*148.1*3.205mm | Viewing Area: | 127.01 (H) *127.01 (V)mm |
| Interface Type: | MIPI | View Direction: | ALL |
| Luminance: | 300 Cd/m2 | Display Mode: | Normally Black |
| Highlight: | Circle Round TFT Display,1080x1080 Round TFT Display,5 Inch Round TFT Display |
||

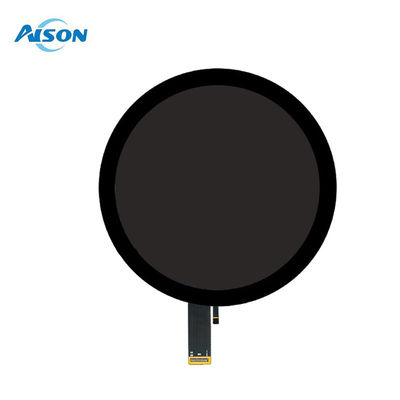

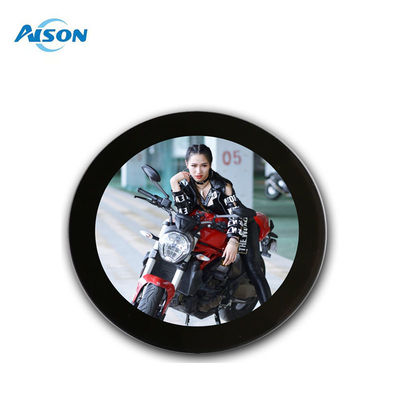

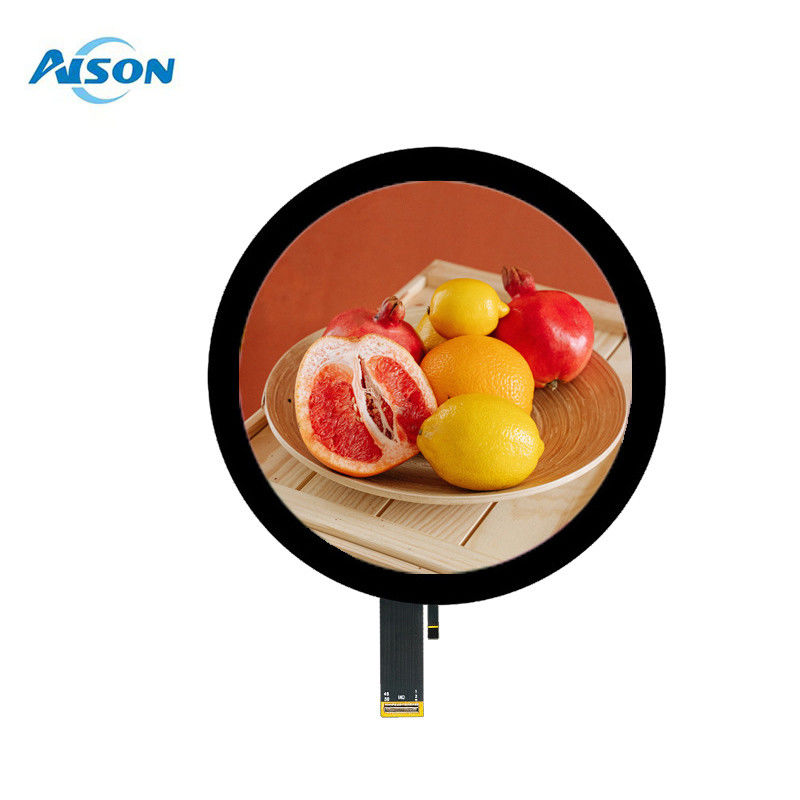

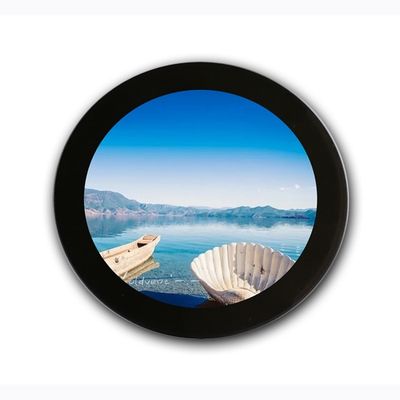

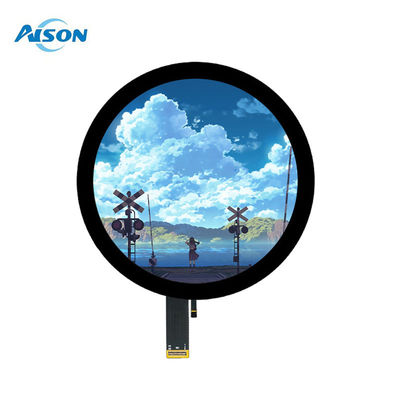

5 Inch Round TFT Display 1080x1080 Circle Display With Captouch Screen
General Description
The Z050YMM-J40-68P0C is a high-performance 5.0-inch circular IPS TFT LCD module developed by BOE. It features a high resolution of 1080x1080 RGB pixels on a black background, delivering an exceptional visual experience. With a brightness of 300cd/m², this module ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
The 5 inch circle lcd module is powered by the reliable HX8399C driver IC and supports the MIPI 4 Lane interface, ensuring consistent and dependable performance. Designed for compatibility with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, this lcd module is ideal for diverse applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.

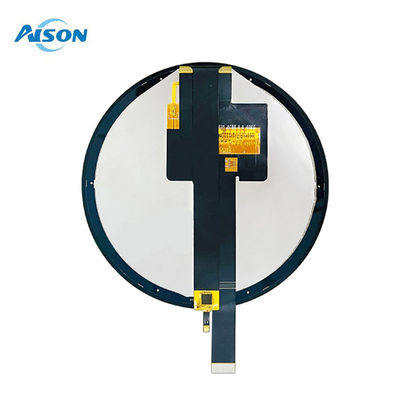

The circular lcd module is equipped with a Flexible Printed Circuit (FPC) featuring a Board-to-Board (B2B) connector, enabling seamless and direct connection to the B2B connector on your PCB. This design simplifies integration and ensures a secure and reliable connection.
General Data| Product Name | 5 inch Circular TFT Display with PCAP |
| Number of Pixel | 1080x1080 |
| Interface | MIPI 50Pin |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 127.01 (H) *127.01 (V)mm |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
