Product Details:
|
| Name: | 7 Inch Industrial TFT LCD Display | Resolution: | 800X480 |
|---|---|---|---|
| Outline Dimension: | 165*104.59*5.8mm | Active Area: | 152.4 X 91.44mm |
| Interface: | 24 Bit RGB | Viewing Angle: | 85/85/85/85 |
| Brightness: | 500cd/m2 | Display Mode: | Normally Black |
| Operating Temperatures: | -30 To 85 Degree | Storage Temperatures: | -40 To 90 Degree |
| Highlight: | 800x480 Industrial TFT Display,Industrial TFT Display 500 Cd/M2,IPS LCD Panel 7 Inch |
||

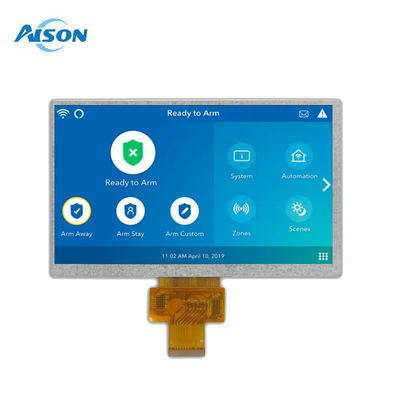

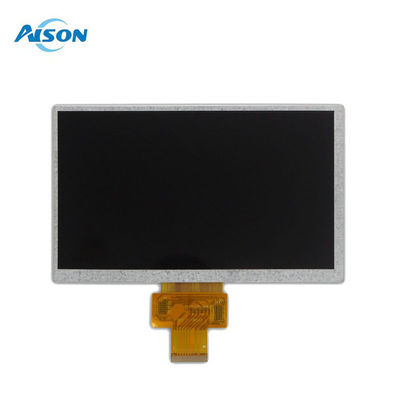

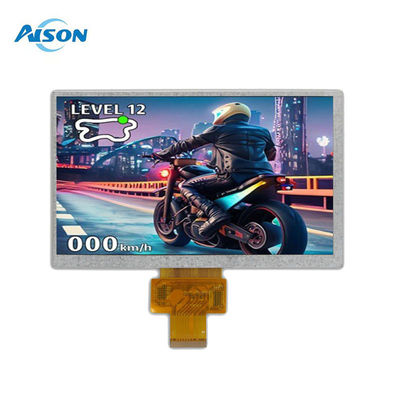

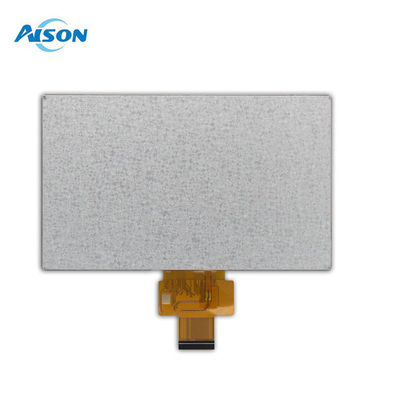

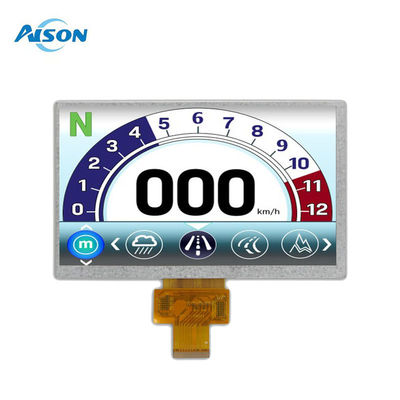

7 Inch Wide Temperature 800x480 Industrial TFT Display 500 Cd/M2 IPS LCD Panel
Z070WV31 is a 7 inch IPS Wide Temperature TFT-LCD display, made of resolution 800x480 pixels. The module is built in with HX8249-A and HX8678-C driver ICs, it supports 24-bit RGB interface. Z070WV31 is adopted IPS panel which is having the advantage of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1000:1 (typical value), high brightness 500 nits (typical value), anti-glare surface panel, aspect Ratio 16:9. This 7” IPS series have Resistive Touch Panel and Projected Capacitive Touch Panel for options. Customer can custom the high brightness according to their needs.
The supply voltage (VCC) of Z070WV31 is from 2.7V to 3.6V, typical value 3.3V. It can be operating at temperatures from -30℃ to+ 85℃ and storage temperatures from -40℃ to +95℃.
General Data
| Model Name | 7 inch Industrial TFT Display |
| Resolution | 800x480 |
| Model Size (W*H*T) | 165.4*104.59*5.8mm |
| Display Area (W*H) | 152.4 x 91.44mm |
| Interface | 24Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 500 cd/m2 |
| Pin number | 40 pin |
| Driver IC | SC7283 |
| Operating temperatures | -30 to 85 ℃ |
| Storage temperatures | -40 to 95 ℃ |
Drawing
Product Details
TFT Applications
This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.
