Product Details:
|
| Name: | 9 Inch Industrial TFT Display | Resolution: | 800x480 |
|---|---|---|---|
| Module Size: | 210.6*126.5*5.3mm | Active Area: | 198 X111.69mm |
| Interface Type: | 24 Bit RGB | Contrast Ratio: | 500:1 |
| Luminance: | 500cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 800x480 Industrial TFT Display,Industrial TFT Display 9 Inch,Industrial Display Screen 50 Pin |
||

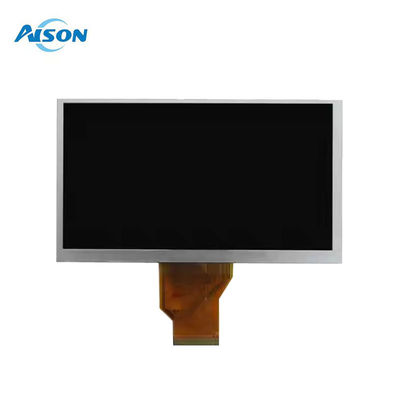

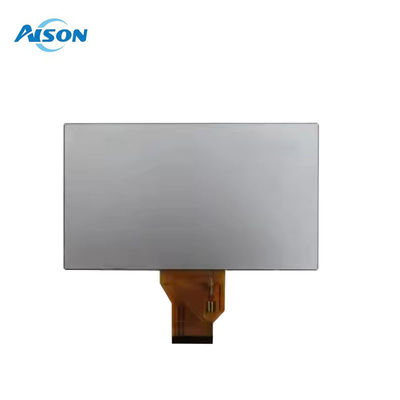

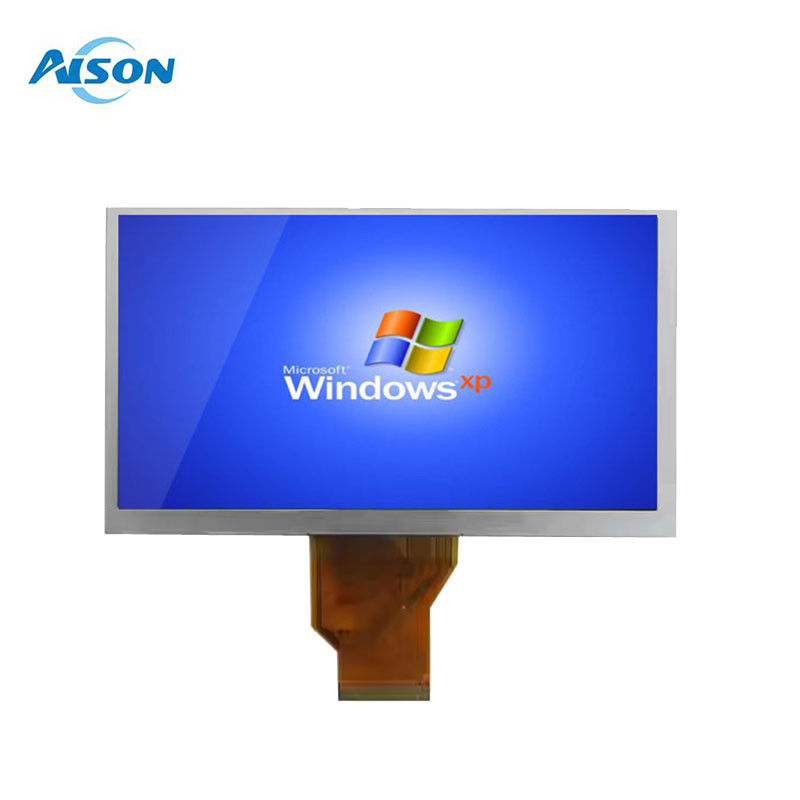

9 inch 800x480 Industrial TFT Display Industrial Display 50 Pin RGB Interface
Display General Description
Introducing the Z090WV01: a high-resolution TFT LCD module designed for exceptional display performance. This 8-inch module features a crisp 800x480 pixel resolution, a 16:9 aspect ratio, and impressive brightness of 500 nits (typical). With a contrast ratio of 500:1, it delivers vivid and vibrant visuals in various environments.
The Z090WV01 offers a compact form factor, with an active display area of 183 x 141 mm and an outline dimension of 162.05 x 121.54 mm, making it ideal for space-constrained applications. Its wide operating temperature range of -20°C to +70°C ensures reliable performance in challenging conditions.
The Z091WV01, a variant of this series, combines superior display quality with robust durability, making it an excellent choice for demanding applications such as industrial control systems and medical devices. Whether you need a dependable display for harsh industrial settings or precise visuals for critical medical equipment, this module delivers outstanding performance and reliability.
General Data
| Model Name | 9 inch TFT LCD Module |
| Resolution | 800x480 |
| Model Size (W*H*T) |
210.6*126.5*5.3mm
|
| Display Area (W*H)mm |
198 x111.69mm
|
| Interface | RGB 24 Bit |
| Display Mode | Normally White,Transmissive |
|
Viewing angles
|
70/70/50/70 |
| Brightness | 500 cd/m2 |
| Pin number | 50 |
|
Contrast Ratio
|
500:1 |
| BACKLIGHT TYPE | 30 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
