Product Details:
|
| Name: | 7 Inch TFT Capacitive Touch Screen | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100.0*7.25mm | Active Area: | 154.08 X 85.92mm |
| Interface: | 24 Bit RGB | Brightness: | 400cd/m2 |
| LCD Type: | Normally White TN,Transmissive | Gray Scale Inversion Direction: | 6 O’clock |
| Highlight: | 7 Inch TFT Capacitive Touch Screen,TFT Capacitive Touch Screen 800x480,TFT Touch Panel 50 Pin |
||
Capacitive Touch Display TFT 7 inch 800x480 TFT Display RGB 50Pin

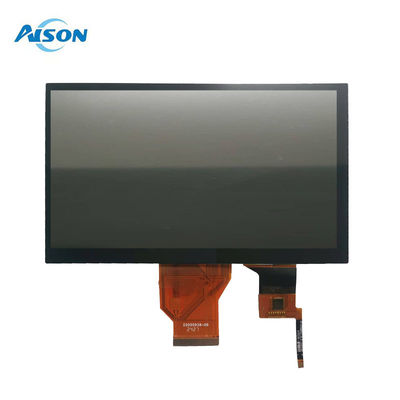

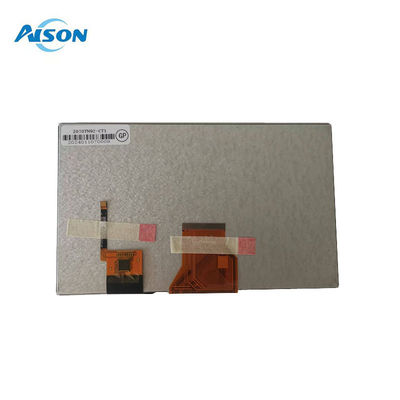

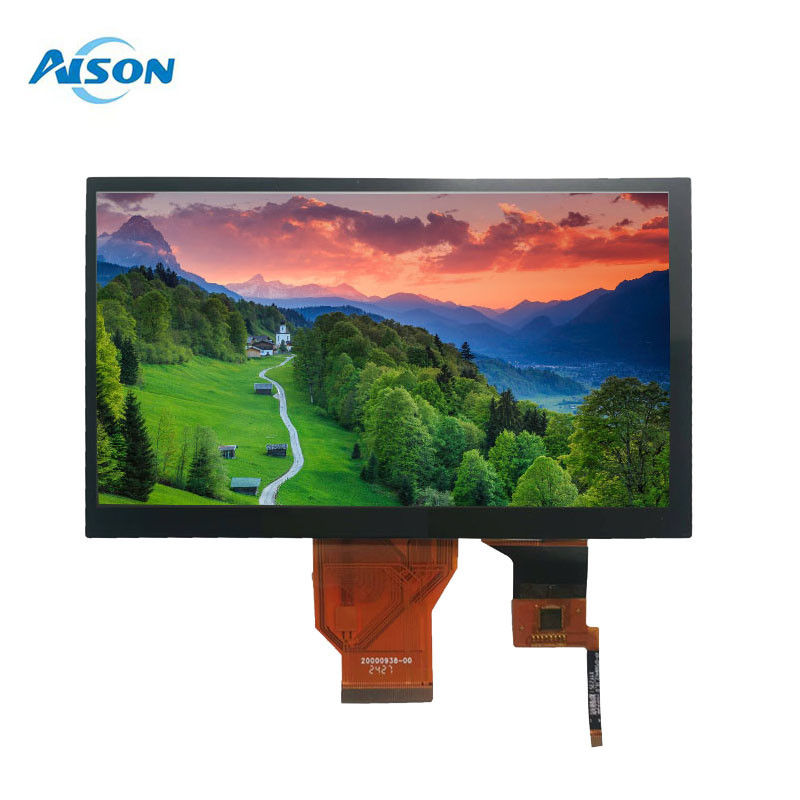

The Z070TN92-CT1 is a 7-inch 800x480 TFT LCD with a capacitive touch function. The dimensions of the display are 165x100mm, with an active area of 154.08x85.92mm. This TFT LCD has a resolution of 800×480 pixels and a brightness of 400 cd/㎡.
Besides, this 7" capacitive touch TFT LCD uses the integrated circuit EK79713CA+EK73202AB2 with an RGB interface. The module operating temperature range from -20°C to +70°C; the storage temperature covers a range of -30°C to +80℃.
General Data
| Model Name | 7 inch Touch TFT Display |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*7.25mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Type | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 400 cd/m2 |
| Pin number | 50 |
| Interface | RGB |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
These tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
