Product Details:
|
| Name: | 8 Inch TFT Capacitive Touch Screen | Number Of Pixels: | 1024X768 |
|---|---|---|---|
| Dimensional Outline: | 194.8*150.4*7.72mm | Active Area: | 162.05*121.54mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 800cd/m2 | Working Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 8 Inch TFT Capacitive Touch Screen,TFT Capacitive Touch Screen High Brightness,High Brightness LCD Panel 1024x768 |
||

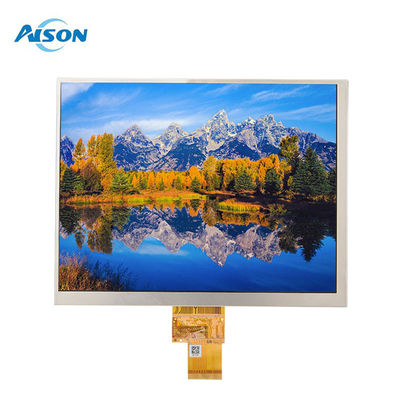

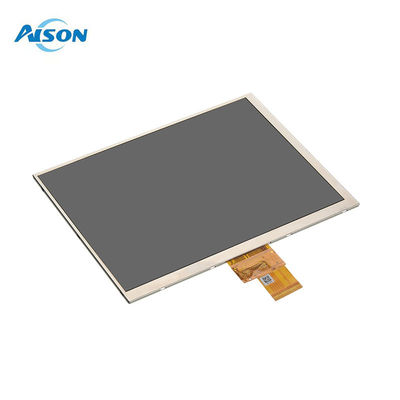

High Brightness 8 inch LCD Panel 1024x768 TFT Capacitive Touch Screen
General Description
The Z080XG01J-CT1 is a high-performance 8-inch TFT LCD module designed for demanding applications. Featuring a WXGA resolution of 1024 x 768 pixels and a 4:3 aspect ratio, this module delivers sharp and vibrant visuals. With a high brightness of 800 nits (typical) and a contrast ratio of 800:1, it ensures excellent visibility in various environments. The module is equipped with capacitive touch functionality (multi-touch support), making it highly interactive and user-friendly.
The Z080XG01J-CT1 boasts a robust construction with an active display area of 162.05 x 121.54 mm and a compact outline dimension of 194.8 x 150.4 x 7.72 mm. Its wide operating temperature range of -20°C to +70°C ensures reliable performance in challenging conditions. Designed for durability and precision, this module is ideal for industrial control systems, medical devices, information kiosks, and other automation applications where high-quality display and reliability are critical.
General Data
| Model Name | 8 inch Touch LCD Display |
| Resolution | 1024x768 |
| Model Size (W*H*T)mm |
194.8*150.4*7.72mm
|
| Display Area (W*H)mm |
162.05*121.54
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 800cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing

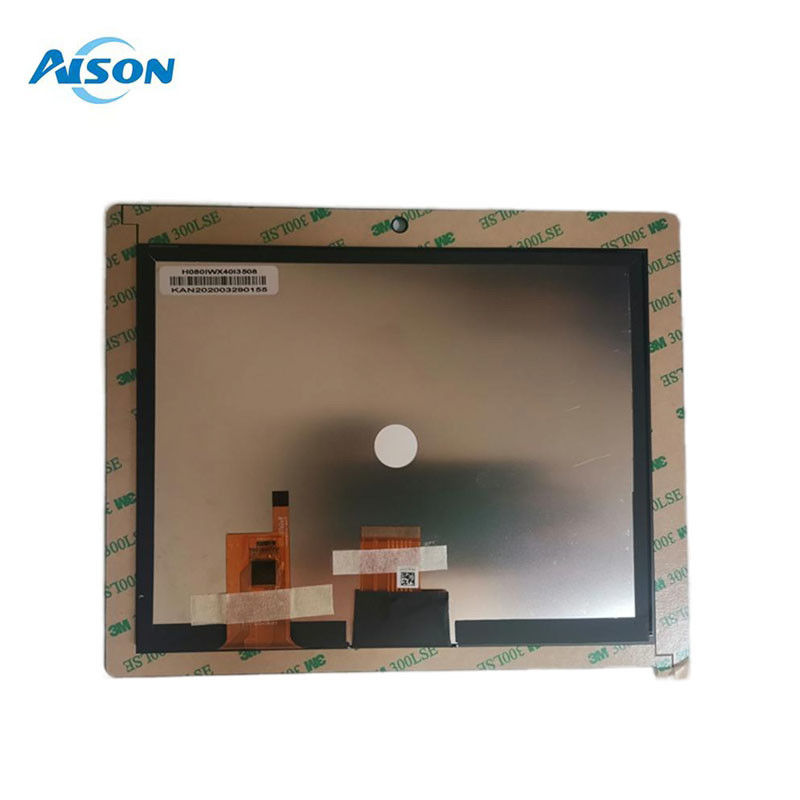

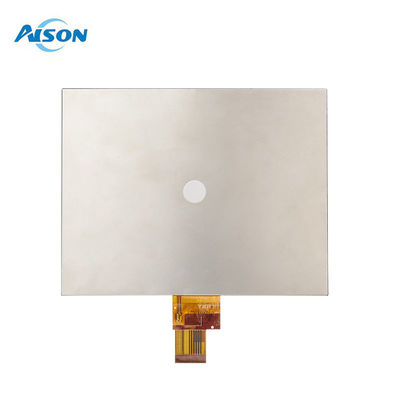

Product Details
TFT Applications:
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
