Product Details:
|
| Name: | 5 Inch IPS TFT Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 120.7*76.3*5mm | Active Area: | 108 X 64.80 Mm |
| Interface: | RGB 24 Bit | Brightness: | 350 Cd/m2 |
| Display Mode: | Normally Black | Viewing Direction: | ALL/IPS |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 800X480 LCD IPS Display,LCD IPS Display 5 Inch,Capacitive Panel Touch Screen 350 cd/m2 |
||

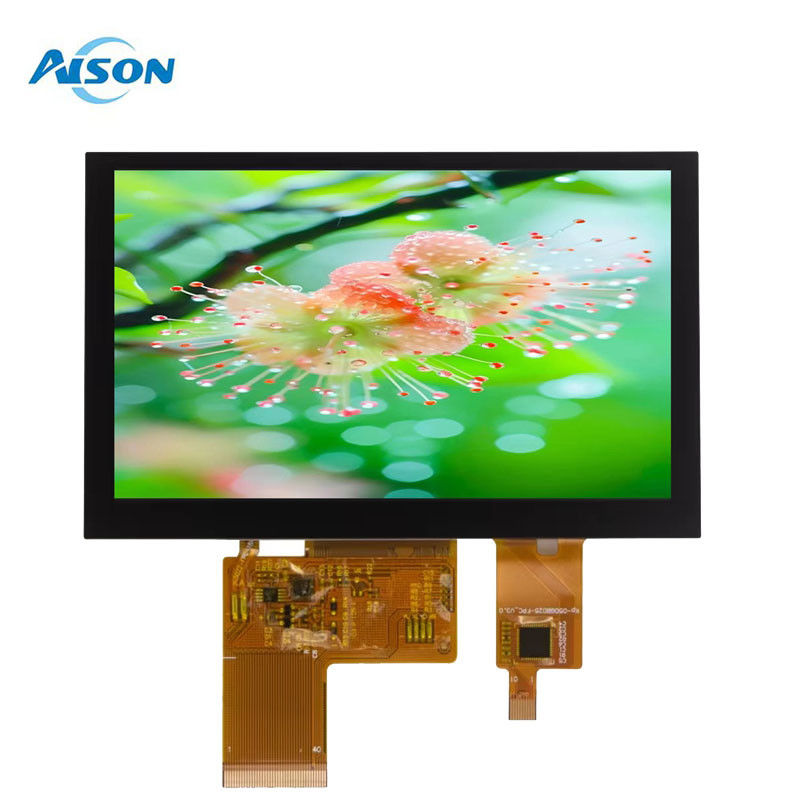

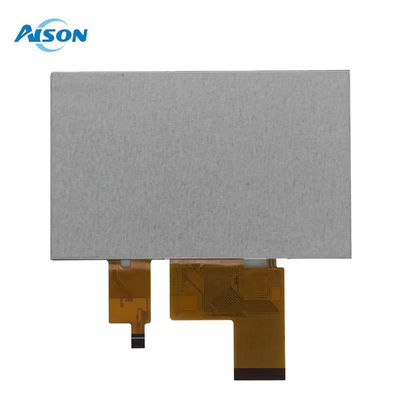

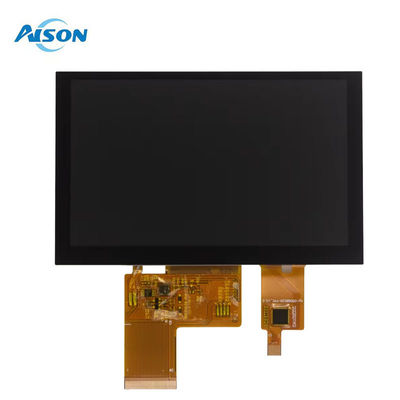

5 Inch IPS Capacitive Touch TFT Display 800x480 350 cd/m2
The Z050WV20-CT is a 5 inch TFT LCD module with a resolution of 800 × 480 pixels and an aspect ratio of 16:9. This TFT module is equipped with a projected capacitive touch screen and adopts IPS display technology, providing wider viewing angles of 85 degrees in all directions (left, right, up, and down). It features a built-in ST7265 driver IC and supports a 24-bit RGB interface.
The module's dimensions are 120.7*76.3 mm, with an active area size of 108 × 64.8 mm. It includes a projected capacitive touch panel (PCAP) with a GT911 driver IC, supporting I2C interfaces and 5-point touch functionality. The power supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V.
This module is designed to operate within a wide operating temperatures range: from -30℃ to +80℃ and storage temperatures from -35℃ to +85℃. It has a contrast ratio of 1,000:1 (typical value) and a brightness of 350 nits (typical value).
General Data
| Product Name | 5 Inch Capacitive Touch Display |
| Number of Pixel | 800x480 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 350cd/m2 |
| Active area |
120.7*76.3*5mm
|
| LCM (W x H x D) |
108x64.8 mm
|
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -35 to 85 degree |
Drawing
Product Details
TFT Applications
The 5 inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.
