Product Details:
|
| Name: | 5 Inch IPS TFT Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 120.7*75.8*2.9mm | Active Area: | 108x64.8 Mm |
| Interface: | LVDS | Brightness: | 500 Cd/m2 |
| Operating Temperatures: | -30 To 80 Degree | Storage Temperatures: | -35 To 85 Degree |
| Highlight: | 500 Cd/M2 LCD IPS Screen,LCD IPS Screen 800x480,Industrial Capacitive Touch Screen 5 Inch |
||

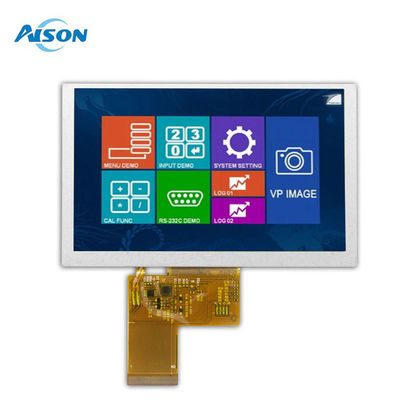

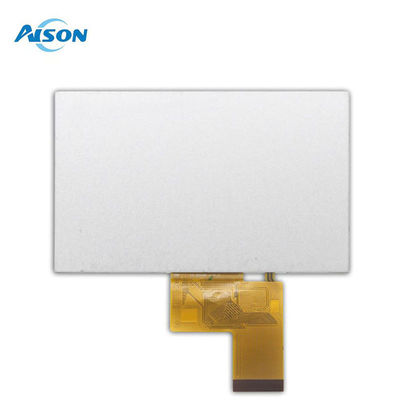

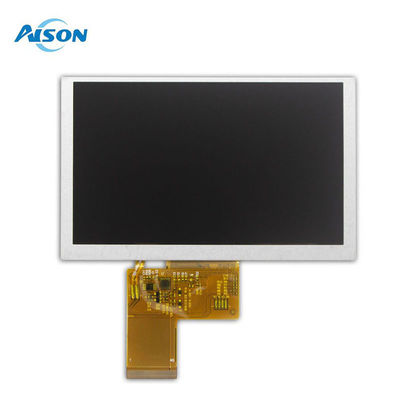

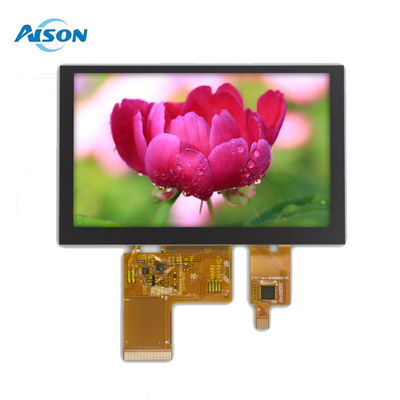

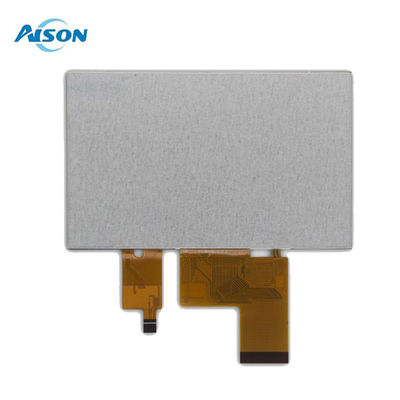

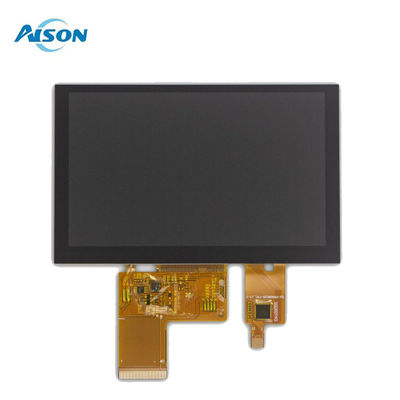

5 Inch 800x480 IPS TFT LCD Display Module With LVDS Interface High Temp. Automotive Grade
Z050WV21 is 5 inch 800x480 resolution LCD display with LVDS interface, standard brightness is 500cd/m2. For this 5 inch TFT LCD module, driver IC is ST7262A, Wide working temp. from -30 to +80,storage temperatures -35 to 85 degree, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V, this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5 inch lcd is suitable for industrial grade and automotive application.
General Data
| Product Name | 5 Inch LVDS TFT LCD Module |
| Number of Pixel | 800x480 |
| Interface | LVDS |
| Luminance(cd/m2) | 500cd/m2 |
| Active area |
120.7*75.8*2.9 mm
|
| LCM (W x H x D) |
108x64.8 mm
|
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -35 to 85 degree |
Drawing
Product Details
TFT Applications
The 5 inch IPS 800x480 LVDS TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
