Product Details:
|
| Name: | ESP32 TFT Display | Resolution: | 800x480 |
|---|---|---|---|
| Application: | Esp32 Development Board | PCB Board Color: | Yellow |
| Driver IC: | ST7268 | Effective Display Area: | 108.00* 64.80(mm) |
| Module Size: | 137.0*84.0(mm) | Touch: | With Resistive Touch |
| Highlight: | 800x480 ESP32 TFT Display,ESP32 TFT Display 5 Inch,Resistive Touchscreens 300 Nits |
||
ESP32 5 inch Development Board 800x480 Smart Display Arduino LVGL WIFI&Bluetooth Resistive Touch
ESP32 TFT 5-inch resistive touch screen with 800 * 480 resolution supporting Bluetooth and WiFi color display

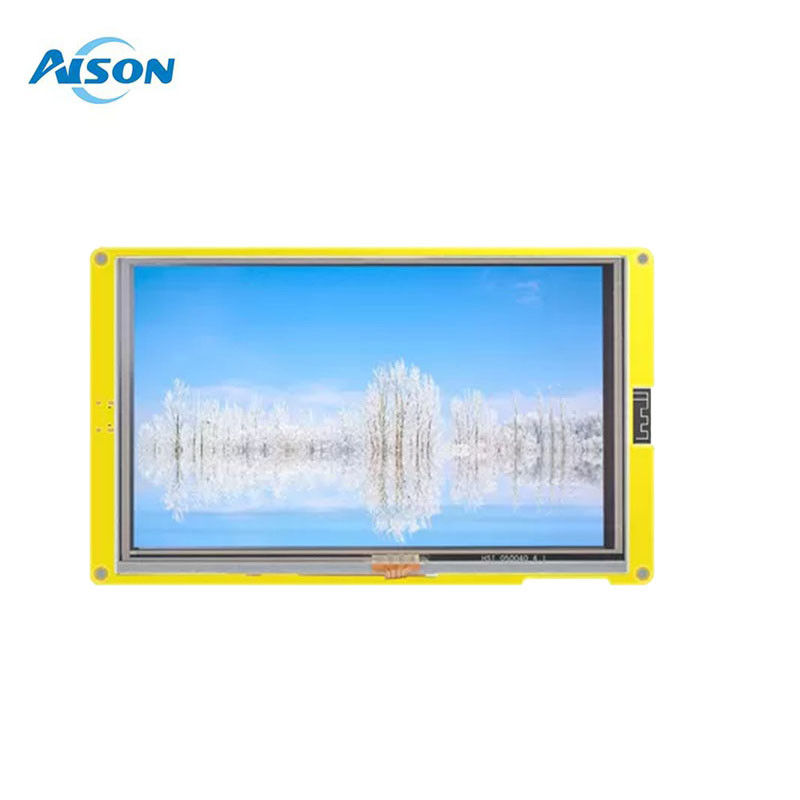

The 5.0 inch ESP32 display module is a powerful development board designed specifically for IoT and embedded applications that require user-friendly interfaces and wireless connectivity options. The board has a 5.0 inch TFT display screen and resistive touch screen, with a resolution of 800x480 pixels.
| Specifications | |
| Part No. | ESP32-8048S050R |
| Size | 5.0inch |
| Display color | RGB 65K color |
| Touch | Resistive touch |
| Resolution(dots) | WVGA, 800*RGB*480 |
| Outline Dimension(mm) | 137.0*84.0(mm) |
| Display Area(mm) | 108.00*64.80(mm) |
| Driver IC | ST7268 |
| Type | TFT |
| Brightness | 300 nits |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) |
Parameters
1. has a low-power dual-core 32-bit CPU, which can be used as an application processor.
2. main frequency is up to 240MHz, providing a computing power of up to 600 DMIPS.
3. has built-in 520 KB SRAM, providing ample memory for applications.
4. supports UART/SPI/I2C/PWM/ADC/DAC and other interfaces, making it flexible and versatile.
5. supports OV2640 and OV7670 cameras, with built-in flash. It also supports picture Wi-Fi upload for easy sharing.
6. supports TF card, providing additional storage space for applications.
7. supports multiple sleep modes, allowing for efficient power management.
8. comes with embedded Lwip and FreeRTOS software, providing a robust and reliable development environment.
9. supports STA/AP/STA+AP working mode, providing flexibility in network connectivity. It also supports Smart Config/AirKiss one-click network configuration for easy setup.
Industry applications
1. Industrial Control: such as factory automation, robot control, logistics control.
2. Smart Home: such as Smart Home Control Panel, Environmental monitoring, etc.
3. Health Care: such as health monitoring, medical equipment, telemedicine, etc.
4. Consumer Electronics: such as digital cameras, electronic toys, portable media player, etc.
5. Automotive Electronics: such as Intelligent Vehicle System, vehicle entertainment, vehicle navigation.
6. Education: such as educational robots, electronic experiments.

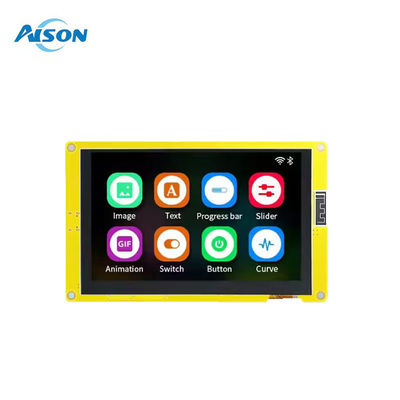

ESP32-8048S050R module supports LVGL, a popular graphics library that provides a range of graphics functions for creating user interfaces, animations, and other visual effects. This makes it easy for developers to create modern and attractive user interfaces for their applications.

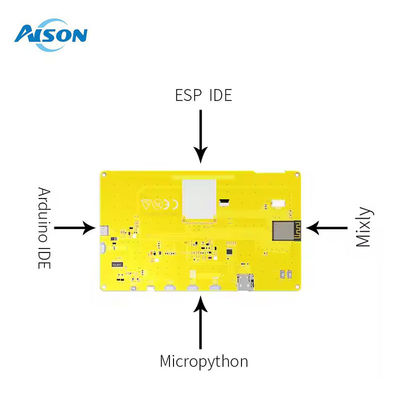

Arduino examples: The module comes with Arduino examples, which can help developers to get started quickly and easily with the platform.
