Product Details:
|
| Name: | ESP32 Graphic Display | Resolution: | 800x480 |
|---|---|---|---|
| Application: | Esp32 Development Board | PCB Board Color: | Yellow |
| Interface: | Micro USB | Driver IC: | EK9716 |
| Touch: | Without Captouch | ||
| Highlight: | 7 Inch ESP32 Graphic Display,ESP32 Graphic Display 300 nits,Smart Screen Display 800x480 |
||

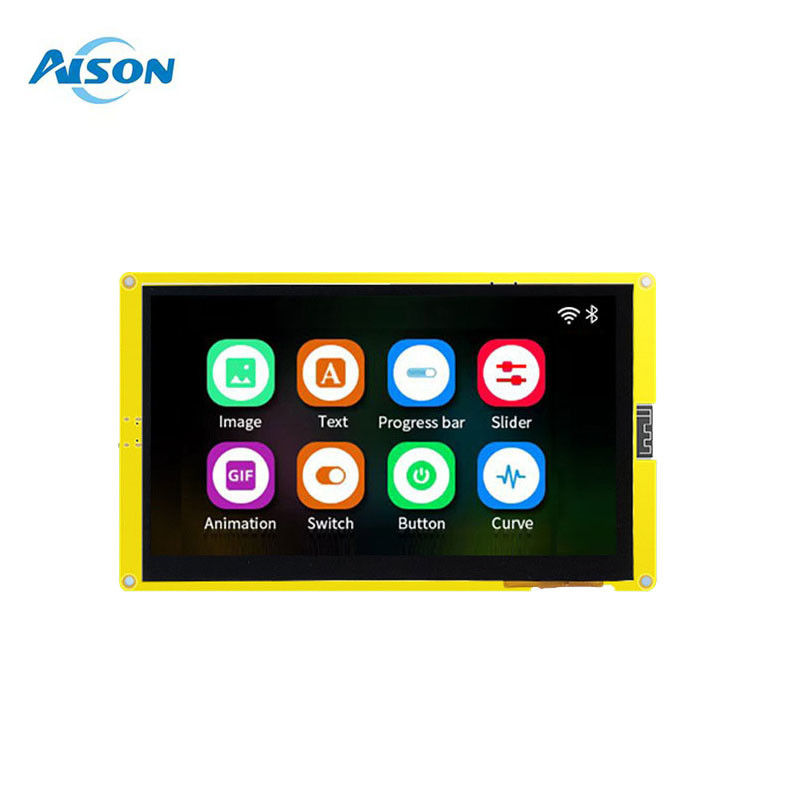

7 Inch ESP32 Display Module Graphic Display Wifi Bluetooth MCU LVGL
The 7.0 inch RGB LCD display module without touch is a high-quality display module that includes an ESP32-S3 microcontroller, 8M PSRAM, 16M Flash, and Wi-Fi capabilities. It features an 800x480 TN Smart Display Screen TFT module, which provides a clear and vivid display.
| Specifications | |
| Part No. | ESP32-8048S070N |
| Size | 7inch |
| Display color | RGB 65K color |
| Driver IC | EK9716 |
| Resolution(dots) | WVGA, 800*RGB*480 |
| LCD Panel | TN |
| PCB Color | yellow |
| Brightness | 300 nits |
| Operating temperature(°C) | -20℃~70℃ |
| Storage temperature(°C) | -30℃~80℃ |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) |
| Pixel Pitch | 0.135(W)x0.135(L) |
| Pixel arrangement | RGB Vertical stripe |
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Application :
1. Internet of things;
2. Intelligent home;
3. Industrial control;
4. Health care;
5. Consumer electronics;
6. Automotive electronics and other applications
ESP32 7inch Display module

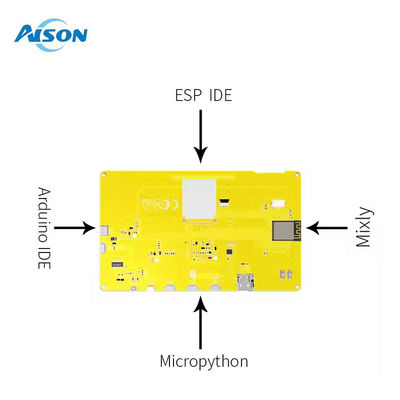

Development support and sample code ESP32 7inchDisplay module provides development support and sample code to enable developers to quickly start using the platform and customize it for specific applications.
Industrial Design: This module adopts industrial design, with high reliability and stability, can work in a variety of harsh environments
Esp327-inch LCD module is open source software and hardware parts, you can easily carry out secondary development and customization
